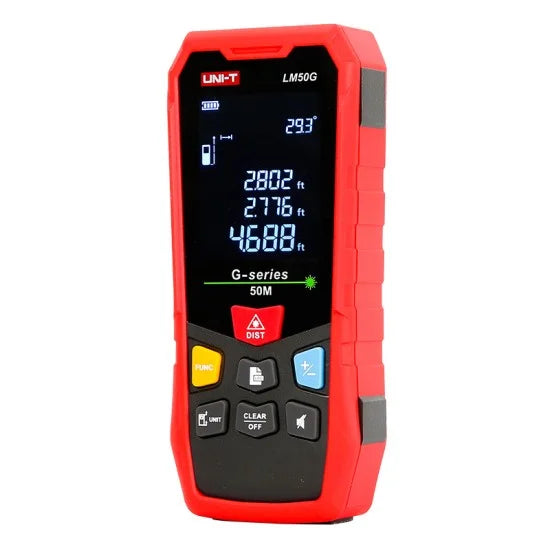

UNI-T LM50G 50m Green Beam Laser Distance Meter: The Ultimate Guide

Overview

The UNI-T LM50G is a professional-grade, 50-meter laser distance meter featuring innovative green beam laser technology for superior visibility in bright outdoor conditions. As part of UNI-T's advanced G-series, this instrument utilizes a high-frequency green laser (515nm) that is significantly brighter and more visible to the human eye than traditional red lasers, especially in sunlight and over long distances .

Designed for architects, construction professionals, surveyors, and outdoor enthusiasts, the LM50G delivers exceptional accuracy of ±(2mm + 5×10⁻⁵D) at ranges up to 50 meters. Its robust feature set includes a large 2.4-inch EBTN HD display, comprehensive measurement modes, and USB rechargeability—all housed in a durable, soft-grip body designed to withstand harsh job site conditions .

Key Features at a Glance

• Bright Green Beam Laser (515nm): Unlike conventional red lasers, the LM50G's green laser is up to 4× brighter and highly visible in daylight, making outdoor measurements practical and accurate .

• 50m Long Range with High Accuracy: Measures distances up to 50 meters with professional-grade accuracy of ±(2mm + 5×10⁻⁵D), ensuring reliable results for demanding applications .

• Large 2.4" EBTN HD Display: Features a high-definition, easy-to-read EBTN (reverse-contrast) screen with auto-backlight for excellent visibility in all lighting conditions—from bright sunlight to dim interiors .

• 20-Group Data Memory: Stores up to 20 measurements for convenient recall and documentation, eliminating manual note-taking on site .

• Comprehensive Measurement Modes: Includes 10+ measurement functions: single/continuous measurement, area/volume, Pythagoras (indirect), Max/Min, addition/subtraction, triangle area, automatic horizontal/vertical leveling, and more .

• 0.5-Second Fast Measurement: Delivers quick, real-time readings with rapid response time for efficient workflow .

• Built-in Angle Sensor: Features integrated electronic leveling with automatic horizontal and vertical measurement functions for accurate alignment and indirect calculations .

• Rechargeable Battery System: Powered by 3× AAA Ni-MH rechargeable batteries (800mAh) charged via Micro-USB, providing eco-friendly and cost-effective operation .

• Durable Protective Design: Features a soft-grip outer casing and arc-shaped PC screen protection to withstand drops and harsh job site conditions. Certified 1-meter drop protection .

• Selectable Measurement Reference: Choose between front, middle (tripod mount), or rear measurement reference points for maximum flexibility in corners, recesses, and various measuring situations .

• Tripod Mountable: Standard 1/4" tripod thread allows for stable, precision measurements during long-distance or continuous monitoring applications .

• Auto Power-Off Functions: Conserves battery life with automatic device shut-off after 3 minutes of inactivity .

Detailed Specifications

Measurement Functions

What's in the Box

Green Beam Technology: Why It Matters

The LM50G's most significant advantage is its green beam laser (515nm) , which offers several key benefits over traditional red lasers :

• Enhanced Visibility: Green light is up to 4× brighter to the human eye than red light, making the laser dot clearly visible even in bright sunlight .

• Better Outdoor Performance: Maintains visibility at maximum distances where red lasers become invisible .

• Better Contrast: Provides superior contrast against various surface colors and materials.

• Reduced Eye Strain: Easier on the eyes during prolonged use compared to red lasers.

This technology transforms outdoor measurement work—tasks like measuring building heights, property boundaries, and construction layouts become practical and accurate without needing additional target plates or reflectors .

Key Functions & Operation

1. Single Distance Measurement

• Press the power button to activate the device and green laser.

• Aim the highly visible green laser dot at the target surface.

• Press the measure button to instantly display the distance on the large 2.4" EBTN display .

2. Continuous Measurement (Tracking Mode)

• Press and hold the measure button to enter continuous measurement mode.

• Move the device while the display updates in real-time at 0.5-second intervals.

• Release the button to lock the final measurement.

• Ideal for finding minimum/maximum distances or measuring room diagonals .

3. Area & Volume Calculation

• Select the area or volume function from the mode menu.

• Measure length and width (and height for volume).

• The device automatically calculates and displays the total area or volume, saving time and reducing calculation errors .

4. Pythagoras (Indirect) Measurement

• Use this function to measure heights or distances that are inaccessible (e.g., measuring building height from the ground).

• The device offers 1-point and 2-point Pythagorean modes for various indirect measurement scenarios .

• The built-in angle sensor ensures accurate calculations based on measured angles and distances .

5. Automatic Horizontal/Vertical Measurement

• The integrated angle sensor automatically calculates horizontal distance even when measuring at an angle.

• Perfect for measuring ceiling heights or horizontal clearances without leveling the device .

6. Addition & Subtraction

• Measure a first value, then press the addition or subtraction button.

• Measure a second value; the device instantly displays the combined result.

• Perfect for calculating total wall lengths or remaining spaces .

7. Triangle Area Measurement

• Select triangle area mode to calculate the area of triangular spaces.

• Measure the required sides; the device automatically calculates and displays the result .

8. Data Memory

• The LM50G stores up to 20 groups of measurement results.

• Recall saved measurements for review or documentation, facilitating efficient data management on site .

9. Reference Plane Selection

• Choose between measuring from the front, middle (tripod), or rear of the device using the reference button .

• Allows for flexible measurement options in corners, recesses, or when using the device against walls.

10. Rechargeable Battery System

• Powered by 3× AAA Ni-MH rechargeable batteries with Micro-USB charging.

• Eliminates the need for disposable batteries, reducing long-term costs and environmental impact .

11. Tripod Mounting

• Standard 1/4" tripod thread allows for stable, precision measurements during long-distance or continuous monitoring applications .

Applications

The UNI-T LM50G's green beam technology and comprehensive features make it ideally suited for :

🏗️ Construction & Building

• Measuring room dimensions, wall lengths, and ceiling heights up to 50m

• Calculating material quantities for flooring, tiling, and drywall

• Verifying structural dimensions and layouts

• Outdoor measurements where green laser visibility excels

🏠 Interior Design & Renovation

• Planning furniture placement and room layouts

• Measuring for custom cabinetry and built-ins

• Calculating paint, wallpaper, and flooring requirements

• Space planning and interior decoration

📐 Architecture & Engineering

• Site surveys and preliminary measurements

• Creating accurate floor plans and elevations

• Engineering inspections and surveys

• Technical monitoring and supervision

🏭 Facility Management & Real Estate

• Property measurement and space assessment

• Real estate development and appraisal

• Facility planning and space optimization

• Production facility supervision

🚓 Traffic Accident Evidence Gathering

• Quickly and accurately measuring accident scenes

• Documenting distances for insurance and legal purposes

• Working in bright outdoor conditions where green laser excels

🔥 Fire Assessment & Emergency Response

• Measuring structural dimensions during fire assessments

• Documenting emergency scenes with precision

• Rapid deployment with 0.5-second measurement speed

🌳 Outdoor & Landscape

• Property boundary verification

• Garden and landscape design measurements

• Outdoor construction projects

• Long-range measurements where red lasers fail

🏡 Home Improvement & DIY

• Home renovation projects

• Furniture assembly and placement

• Workshop measurements and layout

• Personal projects and hobby work

Why Choose the UNI-T LM50G?

LM50G vs. Standard Red Laser Meters

LM50G vs. LM Series Models

The LM50G belongs to UNI-T's specialized G-series with green laser technology:

Customer Reviews & Verdict

The UNI-T LM50G is highly regarded for its green beam visibility, accuracy, and comprehensive feature set. Users consistently praise its ability to perform reliable outdoor measurements where standard red laser meters fail .

Positive Feedback

• Green Laser Visibility: Users highlight the exceptional brightness of the green beam, making outdoor measurements practical and accurate even in direct sunlight .

• Build Quality: The soft-grip casing and durable construction provide confidence in job site conditions .

• Fast Measurements: The 0.5-second response time is frequently noted as a productivity advantage .

• Display Quality: The large 2.4" EBTN screen with auto-backlight is praised for readability in all conditions .

• Value for Money: The combination of green laser technology, multiple functions, and rechargeable batteries offers exceptional value .

Considerations

• Battery Type: Uses rechargeable AAA Ni-MH batteries (included) with Micro-USB charging—ensure you keep the charging cable accessible .

• Price Premium: Green laser technology commands a higher price than equivalent red laser models, but the outdoor capability justifies the investment .

• Weight: At 170g, it's lightweight and portable for all-day carry .

Maintenance & Care

• Battery Care: Use the included rechargeable AAA Ni-MH batteries with the Micro-USB cable. Avoid over-discharging to prolong battery life .

• Lens Cleaning: Keep the laser lens clean using a soft, dry cloth. Avoid touching optical surfaces with fingers .

• Storage: Store in a dry, ventilated place when not in use. Remove from extreme temperatures .

• Environmental Limits: Operate within 0°C to 40°C; avoid extreme temperatures and humidity .

• Avoid Strong Light: Do not look directly into the laser beam or aim at reflective surfaces .

• Drop Protection: While rated for 1-meter drops, avoid unnecessary impacts to maintain long-term accuracy .

Final Verdict

The UNI-T LM50G represents a significant advancement in laser distance measurement technology, addressing the primary limitation of traditional laser meters—outdoor visibility. Its bright green beam (515nm) , 50m range, ±2mm accuracy, and comprehensive measurement functions make it exceptionally well-suited for professionals who need reliable measurements in both indoor and outdoor environments
