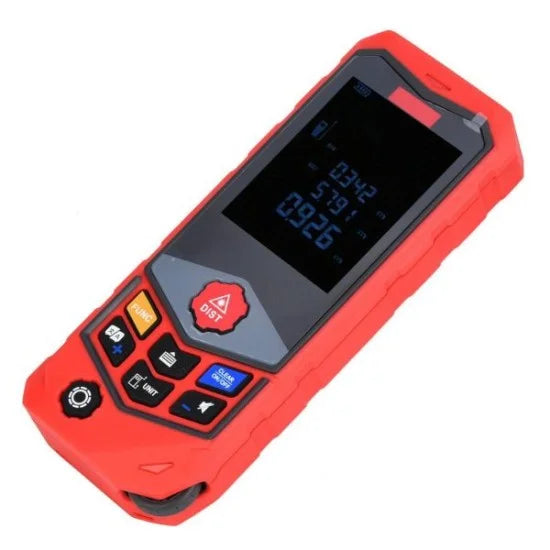

UNI-T LM50D 50m Laser Distance Meter: The Ultimate Guide

Overview

The UNI-T LM50D is a professional-grade, 50-meter laser distance meter featuring an innovative roller wheel design for curved surface measurement—a capability that sets it apart from conventional laser meters. As part of UNI-T's advanced D-series, this instrument combines high-precision laser technology with a unique rolling mechanism, enabling measurements on curved walls, pipes, and irregular surfaces that standard devices cannot handle .

Designed for architects, construction professionals, surveyors, and industrial users, the LM50D delivers reliable distance measurements up to 50 meters with exceptional ±2mm accuracy. Its robust feature set includes a large 2.4-inch EBTN HD display, comprehensive measurement functions, and electronic leveling—all housed in an ergonomic body built for comfortable single-handed operation .

Key Features at a Glance

• Innovative Curved Surface Measurement: Unique roller wheel design allows for measuring curved surfaces, arcs, pipes, and irregular shapes—solving a fundamental limitation of standard laser distance meters .

• 50m Long Range with High Accuracy: Measures distances up to 50 meters with professional-grade accuracy of ±(2mm + 5×10⁻⁵D) , ensuring reliable results for demanding indoor applications .

• Large 2.4" EBTN HD Display: Features a high-definition, easy-to-read EBTN screen with auto-backlight for excellent visibility in all lighting conditions—from bright sunlight to dim interiors .

• Comprehensive Measurement Modes: Includes 12+ measurement functions: single/continuous measurement, area/volume, Pythagoras (indirect), Max/Min, addition/subtraction, triangle area, trapezoid, and curvature measurement .

• Electronic Leveling & Angle Sensor: Built-in electronic leveler with automatic horizontal and vertical leveling functions for accurate alignment and indirect calculations. Measures angles up to ±90.0° .

• 20-Group Data Memory: Stores up to 20 measurements for convenient recall and documentation, eliminating manual note-taking on site .

• Auto Voice and Audio Indication: Integrated audio and voice indication provides clear confirmation of measurements—ideal for situations where the display isn't visible .

• Line Laser Marking Function: Projects a visible laser line for alignment and marking tasks, adding versatility to the instrument .

• Selectable Measurement References: Choose between front, middle, or rear measurement reference points for maximum flexibility in corners, recesses, and various measuring situations .

• Class 2 Laser Safety: Equipped with a safe red laser (630-670nm, <1mW) that provides a clear, visible aiming point .

• Auto Power-Off Functions: Conserves battery life with automatic laser shut-off after 30 seconds, backlight off after 10 seconds, and device shut-off after 3 minutes of inactivity .

Detailed Specifications

The UNI-T LM50D delivers professional-grade performance across all key measurement parameters.

Measurement Specifications

Measurement Functions

General Specifications

What's in the Box

Innovative Roller Wheel Technology

The LM50D's standout feature is its patented roller wheel design for curved surface measurement :

• Curved Surface Capability: Simply roll the wheel along any curved surface—the device accurately calculates the curve length using integrated wheel rotation technology .

• Application Versatility: Ideal for measuring curved walls, pipes, columns, architectural features, and irregular shapes where standard laser meters cannot function .

• Precision Engineering: The wheel mechanism is precisely calibrated to maintain ±2mm accuracy even on curved surfaces .

Key Functions & Operation

1. Curved Surface Measurement

• The LM50D's signature feature enables measurement along any curved path .

• Simply roll the integrated wheel along pipes, curved walls, or irregular surfaces .

• The device calculates and displays the curve length with millimeter precision .

2. Single Distance Measurement

• Press the power button to activate the device and laser .

• Aim the laser dot at the target surface.

• Press the measure button to instantly display the distance on the large 2.4" EBTN display .

3. Continuous Measurement (Tracking Mode)

• Press and hold the measure button to enter continuous measurement mode .

• Move the device while the display updates in real-time.

• Release the button to lock the final measurement.

• Ideal for finding minimum/maximum distances or measuring room diagonals .

4. Area, Volume & Advanced Geometric Calculations

• Select from area, volume, triangle area, or trapezoid measurement modes .

• Measure the required dimensions; the device automatically calculates and displays the result.

• Saves time and eliminates calculation errors.

5. Pythagoras (Indirect) Measurement

• Measure inaccessible heights or distances (e.g., building height from the ground) .

• The device uses the Pythagorean theorem to calculate the desired dimension based on measured sides .

6. Electronic Angle Measurement & Leveling

• The built-in electronic leveler measures angles up to ±90.0° with high accuracy .

• Automatic horizontal and vertical leveling functions ensure accurate alignment .

• Perfect for checking slopes, inclines, and ensuring level installations.

7. Auto Voice and Audio Indication

• The LM50D features integrated voice and audio indication for clear confirmation of measurements .

• Particularly useful in situations where the display isn't visible, such as overhead measurements or tight spaces.

8. Line Laser Marking

• The integrated laser line function projects a visible line for alignment and marking tasks .

• Useful for layout work, marking cut lines, and alignment during installation.

9. Data Memory

• Stores up to 20 groups of measurement results .

• Recall saved measurements for review or documentation, facilitating efficient data management on site.

10. Reference Plane Selection

• Choose between measuring from the front, middle, or rear of the device using the reference button .

• Allows for flexible measurement options in corners, recesses, or when using the device against walls.

LM50D vs. Standard Laser Distance Meters

Applications

The UNI-T LM50D is an ideal all-in-one tool for:

🏗️ Construction & Building

• Measuring room dimensions, wall lengths, and ceiling heights up to 50m

• Curved surface measurement for architectural features, arched windows, and curved walls

• Calculating material quantities for flooring, tiling, and drywall

• Verifying structural dimensions and layouts

🏭 Industrial & Heavy Industry

• Measuring pipe diameters and curved industrial equipment

• Industrial machinery layout and installation

• Warehouse racking and storage system planning

• Factory supervision and engineering inspection

🏠 Interior Design & Renovation

• Planning furniture placement and room layouts

• Measuring for custom curved cabinetry and built-ins

• Creating accurate floor plans with curved elements

• Space planning and interior decoration

📐 Engineering & Surveying

• Site surveys and preliminary measurements

• Engineering inspections and surveys

• Technical monitoring and supervision

🚓 Traffic Accident Evidence Gathering

• Quickly and accurately measuring accident scenes

• Documenting distances for insurance and legal purposes

🔥 Fire Assessment & Emergency Response

• Measuring structural dimensions during fire assessments

• Documenting emergency scenes with precision

🏡 Real Estate Development

• Property measurement and space assessment

• Real estate development and appraisal

Why Choose the UNI-T LM50D?

LM50D vs. LM100D: Key Differences

The LM D-series offers two models with varying ranges, sharing the same core features :

Customer Reviews & Verdict

The UNI-T LM50D is widely recognized as an innovative solution for professionals who need to measure curved surfaces and irregular shapes—a task impossible with conventional laser distance meters. Its combination of advanced features, including the unique roller wheel design, comprehensive measurement modes, and user-friendly interface, makes it a versatile tool for a wide range of applications .

The official UNI-T product description highlights its "millimeter accuracy," "large HD display," "auto voice and audio indication," and "curvature measurement via the roller"—credentials that speak to its professional-grade design and innovative capabilities .

Positive Feedback

• Unique Roller Wheel Design: Users praise the curved surface measurement capability for solving problems that standard laser meters cannot address—ideal for pipe fitters, architects, and construction professionals working with curved elements .

• Voice Indication: The audio feedback feature is highly valued for measurements in awkward positions where the display isn't visible .

• Display Quality: The 2.4" EBTN screen with auto-backlight is frequently highlighted as a major advantage over smaller, lower-resolution displays .

• Ease of Use: Ergonomic exterior and comfortable handling make it accessible for users of all experience levels .

Considerations

• Indoor Use: With a 50m range, this model is optimized for indoor applications and general construction work rather than long-distance outdoor measurements .

• Battery Type: Uses 3× AAA batteries (included) which are readily available worldwide .

• Learning Curve: The extensive 12+ mode functionality may require some familiarization for new users.

Maintenance & Care

• Battery Care: Use high-quality AAA alkaline batteries. Remove batteries if storing for extended periods to prevent leakage .

• Lens Cleaning: Keep the laser lens clean using a soft, dry cloth. Avoid touching optical surfaces with fingers.

• Storage: Store in a dry, ventilated place when not in use. Remove from extreme temperatures .

• Environmental Limits: Operate within 0°C to 40°C; avoid extreme temperatures and humidity .

• Avoid Strong Light: Do not look directly into the laser beam or aim at reflective surfaces.

• Roller Wheel Care: Keep the roller wheel clean and free from debris to maintain measurement accuracy .

Final Verdict

The UNI-T LM50D represents an innovative leap forward in laser distance measurement technology for indoor and general construction applications. Its unique roller wheel design for curved surface measurement opens up new possibilities for architects, designers, and construction professionals working with irregular shapes and curved surfaces—tasks impossible with conventional laser meters .

Beyond its signature feature, the LM50D delivers professional-grade performance across the board: 50m range, ±2mm accuracy, 12+ measurement modes, electronic angle measurement, voice indication, and a large 2.4-inch EBTN HD display
