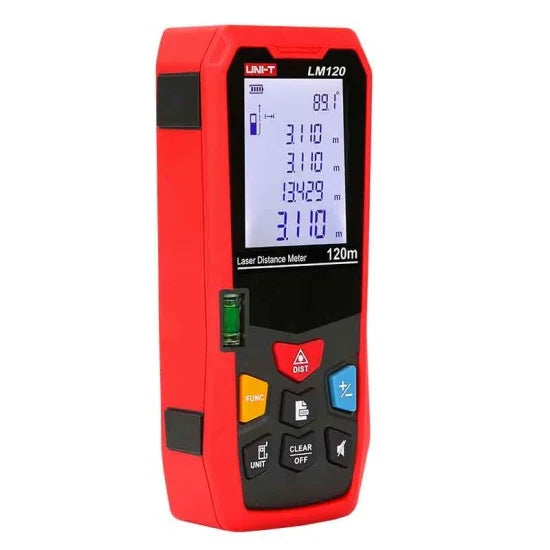

UNI-T LM120D PRO 120m Laser Distance Meter: The Ultimate Guide

Overview

The UNI-T LM120D PRO is an advanced, professional-grade laser distance meter featuring an innovative roller wheel design for curved surface measurement—a capability that sets it apart from conventional laser meters. As part of UNI-T's professional D-series, this instrument combines high-precision laser technology with a unique rolling mechanism, enabling measurements on curved walls, pipes, and irregular surfaces that standard devices cannot handle .

Designed for architects, construction professionals, surveyors, and industrial users, the LM120D PRO delivers reliable distance measurements up to 120 meters with exceptional ±2mm accuracy. Its robust feature set includes a 2.4-inch color display, Bluetooth connectivity, voice annunciation, and IP65 rugged durability—all housed in an ergonomic body built to withstand harsh job site conditions .

Key Features at a Glance

• Innovative Curved Surface Measurement: Unique roller wheel design allows for measuring curved surfaces, arcs, pipes, and irregular shapes—solving a fundamental limitation of standard laser distance meters .

• 120m Long Range with High Accuracy: Measures distances up to 120 meters with professional-grade accuracy of ±2mm, ensuring reliable results for demanding indoor and outdoor applications .

• 2.4" Color Display: Features a large, vibrant 2.4-inch color screen with auto-rotate for excellent readability in all lighting conditions .

• Bluetooth Connectivity: Built-in Bluetooth module enables wireless data transmission to smartphones or computers, allowing for easy recording, editing, and sharing of measurement data via dedicated apps .

• Voice Annunciation: Integrated bilingual voice broadcast (Chinese/English) provides clear audio confirmation of measurements—ideal for situations where the display isn't visible .

• Laser Line Marking Function: Projects a visible laser line for alignment and marking tasks, adding versatility to the instrument .

• Comprehensive Measurement Modes: Includes 12+ measurement functions: single/continuous, area/volume, Pythagoras (indirect), triangle area, trapezoid, automatic horizontal/vertical, addition/subtraction, and curve measurement .

• Electronic Leveling & Angle Sensor: Built-in electronic level with ±90.0° angle measurement for accurate horizontal and vertical alignment .

• Data Memory: Stores up to 50 groups of measurement results for convenient recall and documentation .

• Rugged Industrial Design: IP65 dust and water resistant with certified 2-meter drop protection, ensuring reliable operation in harsh construction environments .

• Rechargeable Battery System: Powered by 3× AAA Ni-MH rechargeable batteries charged via Micro-USB, providing eco-friendly and cost-effective operation .

• Multiple Reference Points: Selectable measurement from front, tripod mount, or rear of device for maximum flexibility in various measuring situations .

Detailed Specifications

Measurement Specifications

Measurement Functions

Data & Connectivity

Power & Auto-Off

Environmental & Physical Specifications

What's in the Box

Innovative Roller Wheel Technology

The LM120D PRO's standout feature is its patented roller wheel design for curved surface measurement :

• Curved Surface Capability: Simply roll the wheel along any curved surface—the device accurately calculates the curve length using integrated wheel rotation technology .

• Application Versatility: Ideal for measuring curved walls, pipes, columns, architectural features, and irregular shapes where standard laser meters cannot function .

• Precision Engineering: The wheel mechanism is precisely calibrated to maintain ±2mm accuracy even on curved surfaces .

Key Functions & Operation

1. Curved Surface Measurement

• The LM120D PRO's signature feature enables measurement along any curved path .

• Simply roll the integrated wheel along pipes, curved walls, or irregular surfaces .

• The device calculates and displays the curve length with millimeter precision .

2. Single Distance Measurement

• Press the power button to activate the device and laser .

• Aim the laser dot at the target surface .

• Press the measure button to instantly display the distance on the 2.4" color screen .

3. Continuous Measurement (Tracking Mode)

• Press and hold the measure button to enter continuous measurement mode .

• Move the device while the display updates in real-time .

• Release the button to lock the final measurement .

• Ideal for finding minimum/maximum distances or measuring room diagonals .

4. Area, Volume & Advanced Geometric Calculations

• Select from area, volume, triangle area, or trapezoid measurement modes .

• Measure the required dimensions; the device automatically calculates and displays the result .

• Saves time and eliminates calculation errors .

5. Pythagoras (Indirect) Measurement

• Measure inaccessible heights or distances (e.g., building height from the ground) .

• The device uses the Pythagorean theorem to calculate the desired dimension based on measured sides .

6. Electronic Angle Measurement & Leveling

• The built-in electronic leveler measures angles up to ±90.0° with high accuracy .

• Automatic horizontal and vertical leveling functions ensure accurate alignment .

• Perfect for checking slopes, inclines, and ensuring level installations .

7. Bluetooth Connectivity & Voice Annunciation

• Bluetooth module enables wireless data transfer to smartphones or computers for easy recording and sharing .

• Bilingual voice broadcast (Chinese/English) provides clear audio confirmation of measurements—especially useful when the display isn't visible .

8. Laser Line Marking

• The integrated laser line function projects a visible line for alignment and marking tasks .

• Useful for layout work, marking cut lines, and alignment during installation .

9. Data Memory

• Stores up to 50 groups of measurement results .

• Recall saved measurements for review or documentation, facilitating efficient data management on site .

10. Reference Plane Selection

• Choose between measuring from the front, tripod mount, or rear of the device .

• Allows for flexible measurement options in corners, recesses, or when using a tripod .

11. IP65 Protection & 2-Meter Drop Resistance

• Fully protected against dust ingress and water jets, ensuring reliable operation in challenging job site conditions .

• Certified to withstand accidental falls from ladders and scaffolding up to 2 meters .

LM120D PRO vs. Standard Laser Distance Meters

Applications

The UNI-T LM120D PRO is an ideal all-in-one tool for:

🏗️ Construction & Building

• Measuring room dimensions, wall lengths, and ceiling heights up to 120m

• Curved surface measurement for architectural features, arched windows, and curved walls

• Calculating material quantities for flooring, tiling, and drywall

• Verifying structural dimensions and layouts

🏭 Industrial & Heavy Industry

• Measuring pipe diameters and curved industrial equipment

• Industrial machinery layout and installation

• Warehouse racking and storage system planning

• IP65 rated for harsh industrial environments

🏠 Architecture & Interior Design

• Planning furniture placement and room layouts

• Measuring for custom curved cabinetry and built-ins

• Creating accurate floor plans with curved elements

• Space planning and interior decoration

📐 Engineering & Surveying

• Site surveys and preliminary measurements

• Creating accurate floor plans and elevations

• Engineering inspections and surveys

• Technical monitoring and supervision

🚓 Traffic Accident Evidence Gathering

• Quickly and accurately measuring accident scenes

• Documenting distances for insurance and legal purposes

• Working in all weather conditions with IP65 protection

🌳 Outdoor & Landscape

• Property boundary verification

• Garden and landscape design measurements

• Outdoor construction projects

• Long-range measurements with Bluetooth data logging

🔥 Fire Assessment & Emergency Response

• Measuring structural dimensions during fire assessments

• Documenting emergency scenes with precision

• Rapid deployment with intuitive operation

Why Choose the UNI-T LM120D PRO?

LM120D PRO vs. LM120A: Key Differences

Customer Reviews & Verdict

The UNI-T LM120D PRO is widely recognized as an innovative solution for professionals who need to measure curved surfaces and irregular shapes—a task impossible with conventional laser distance meters. Its combination of advanced features, Bluetooth connectivity, voice annunciation, and rugged durability sets it apart in the professional measurement market .

Positive Feedback

• Unique Roller Wheel Design: Users praise the curved surface measurement capability for solving problems that standard laser meters cannot address—ideal for pipe fitters, architects, and construction professionals working with curved elements .

• Voice Indication: The audio feedback feature is highly valued for measurements in awkward positions where the display isn't visible .

• Build Quality: The IP65 rating and 2-meter drop protection provide confidence in demanding job site environments .

• Bluetooth Connectivity: Wireless data transfer enables efficient documentation and sharing of measurements .

• Color Display: The vibrant 2.4" screen with auto-rotate is frequently highlighted as a major advantage over monochrome displays .

Considerations

• Battery Type: Uses rechargeable AAA Ni-MH batteries (included) with Micro-USB charging—ensure you keep the charging cable accessible .

• Weight: At just 170g, it's lightweight and portable for all-day carry .

• Learning Curve: The extensive 12+ mode functionality may require some familiarization for new users .

• Outdoor Use: Like all laser meters, bright sunlight may reduce visibility of the laser dot; a target plate is recommended for long-distance outdoor measurements .

Maintenance & Care

• Battery Care: Use the included rechargeable AAA Ni-MH batteries with the Micro-USB cable. Avoid over-discharging to prolong battery life .

• Lens Cleaning: Keep the laser lens clean using a soft, dry cloth. Avoid touching optical surfaces with fingers .

• Storage: Store in a dry, ventilated place when not in use. Remove from extreme temperatures .

• Environmental Limits: Operate within 0°C to 40°C; avoid extreme temperatures and humidity .

• Avoid Strong Light: Do not look directly into the laser beam or aim at reflective surfaces .

• Drop Protection: While rated for 2-meter drops, avoid unnecessary impacts to maintain long-term accuracy .

Final Verdict

The UNI-T LM120D PRO represents a significant innovation in laser distance measurement technology, addressing a fundamental limitation of conventional meters with its patented roller wheel design for curved surface measurement . Beyond this signature feature, it delivers professional-grade performance across the board: 120m range, ±2mm accuracy, 12+ measurement modes, Bluetooth connectivity, voice annunciation, laser line marking, and IP65 rugged durability .

The official UNI-T product description highlights its "innovative roller design for curved surface measurement," "bilingual voice broadcast," "Bluetooth data transmission," and "IP65 dust and water resistance with 2-meter drop protection"—credentials that speak to its professional-grade design and innovative capabilities
