UNI-T LM120A 120m Laser Distance Meter: The Ultimate Guide

Overview

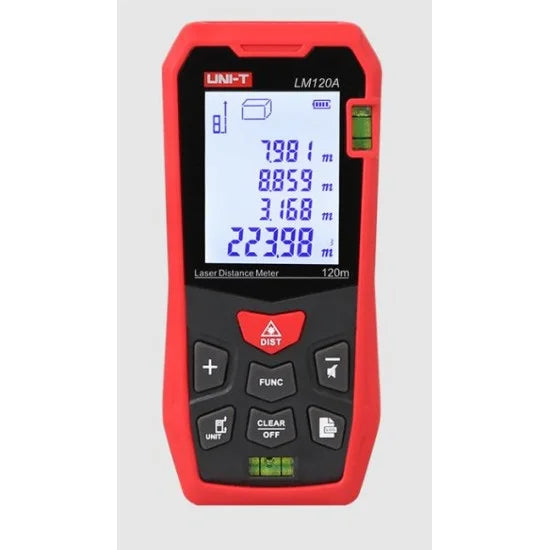

The UNI-T LM120A is a professional-grade, 120-meter laser distance meter engineered for architects, construction professionals, surveyors, and DIY enthusiasts who demand precision and versatility in their measurements . As part of UNI-T's advanced LM A series, this instrument delivers reliable distance measurements up to 120 meters with exceptional accuracy of ±2mm, making it an indispensable tool for a wide range of indoor and outdoor applications .

Designed for both professional and personal use, the LM120A features an ergonomic exterior for comfortable handling and intuitive operation . Its large 2.0-inch HD backlit screen, comprehensive measurement functions, and robust data management capabilities allow users to perform everything from simple distance measurements to complex geometric calculations with ease . Whether you're planning a renovation, supervising construction, or developing real estate, the LM120A provides the precision and versatility you need .

Key Features at a Glance

• 120m Long Range with High Accuracy: Measures distances up to 120 meters with professional-grade accuracy of ±(2mm + 5×10⁻⁵D) , ensuring reliable results for demanding applications .

• Large 2.0" HD Backlit Display: Features a clear, easy-to-read screen with auto-backlight for excellent visibility in all lighting conditions—from bright sunlight to dim interiors .

• 99-Group Data Memory: Stores up to 99 measurements for convenient recall and documentation, eliminating manual note-taking on site .

• Comprehensive Measurement Modes: Includes single/continuous measurement, area/volume, Pythagorean (4 modes), addition/subtraction, Max/Min, and triangle area functions—covering virtually every measurement scenario .

• Built-in Dual-Axis Spirit Level: Features integrated horizontal and vertical bubble levels for accurate alignment and leveling during measurements .

• Selectable Reference Plane: Allows measurements from either the front or rear of the device for maximum flexibility in corners, recesses, and various measuring situations .

• Self-Calibration Function: Built-in self-calibration ensures long-term measurement accuracy and can be adjusted within -9mm to +9mm based on actual measurement errors .

• Class 2 Laser Safety: Equipped with a safe red laser (630-670nm, <1mW) that provides a clear, visible aiming point .

• Long Battery Life: Powered by 2× AAA batteries, providing approximately 8000 measurements on a full charge .

• Auto Power-Off Functions: Conserves battery life with automatic laser shut-off after 20 seconds and device shut-off after 150 seconds of inactivity .

• Multiple Measurement Units: Supports m/in/ft/in+ft (selectable) to suit regional preferences .

• Mute Function: Available to turn the measurement beep on or off as needed for quiet environments .

Detailed Specifications

The UNI-T LM120A delivers professional-grade performance across all key measurement parameters .

Measurement Specifications

Measurement Functions

General Specifications

What's in the Box

Key Functions & Operation

1. Single Distance Measurement

• Press the power button to activate the device and laser .

• Aim the laser dot at the target surface.

• Press the measure button to instantly display the distance on the large 2.0" backlit LCD screen .

2. Continuous Measurement (Tracking Mode)

• Press and hold the measure button to enter continuous measurement mode .

• Move the device while the display updates in real-time, showing Max/Min values simultaneously.

• Release the button to lock the final measurement.

• Ideal for finding minimum/maximum distances or measuring room diagonals .

3. Area & Volume Calculation

• Press FUNC once for area measurement, twice for volume measurement .

• A symbol will appear on the display indicating the measurement mode.

• Measure length and width (and height for volume) by pressing DIST for each dimension .

• The device automatically calculates and displays the total area or volume on the primary display, with individual measurements on the secondary display .

4. Pythagorean (Indirect) Measurement

• The LM120A offers 4 different Pythagorean modes for measuring heights or distances that are inaccessible (e.g., measuring building height from the ground) .

• Press FUNC multiple times to cycle through the four indirect measurement modes .

• Follow the on-screen prompts to measure the required sides; the device calculates the desired dimension using the Pythagorean theorem.

• Ensure measurements are taken from the same starting point and that the leg is shorter than the hypotenuse .

5. Addition & Subtraction

• Measure a first value, then press the addition or subtraction button.

• Measure a second value; the device instantly displays the combined result.

• Perfect for calculating total wall lengths or remaining spaces .

6. Min/Max Measurement

• In continuous measurement mode, the device simultaneously displays the minimum and maximum values detected .

• Useful for ensuring level surfaces or finding the shortest/longest distance in a room.

7. Data Memory

• The LM120A stores measurement results in its 99-group memory .

• Recall saved measurements for review or documentation, facilitating efficient data management on site .

8. Reference Plane Selection

• Choose between measuring from the front or rear of the device using the reference button .

• This feature allows for flexible measurement options in corners, recesses, or when using the device against walls.

9. Built-in Spirit Level

• Use the integrated horizontal and vertical bubble levels to ensure the device is perfectly level before measuring, increasing accuracy .

10. Self-Calibration Function

• The LM120A includes a self-calibration feature to ensure long-term measurement accuracy .

• Users can adjust the calibration value within a range of -9mm to +9mm based on actual measurement errors .

11. Unit Settings

• Long press the unit button to cycle through 6 optional measurement units: m, ft, in, and combination formats .

12. Mute Function

• Long press the sound button to turn the measurement beep on or off, ideal for quiet environments .

LM A Series Comparison: LM120A vs. LM100A vs. LM70A vs. LM50A

The LM A series offers four models with varying ranges, all sharing the same core features :

Applications

The UNI-T LM120A is an ideal all-in-one tool for :

🏗️ Construction & Building

• Measuring room dimensions, wall lengths, and ceiling heights up to 120m

• Calculating material quantities for flooring, tiling, and drywall

• Verifying structural dimensions and layouts

• Construction site supervision and quality control

• Outdoor measurements where maximum range is required

🏠 Interior Design & Renovation

• Planning furniture placement and room layouts

• Measuring for custom cabinetry and built-ins

• Calculating paint, wallpaper, and flooring requirements

• Space planning and interior decoration

• Real estate assessment for property appraisals and listings

📐 Architecture & Engineering

• Site surveys and preliminary measurements

• Creating accurate floor plans and elevations

• Engineering inspections and surveys

• Technical monitoring and supervision

🏭 Facility Management & Real Estate

• Property measurement and space assessment

• Real estate development and appraisal

• Facility planning and space optimization

• Production facility supervision

• Warehouse and logistics – measuring cargo dimensions for inventory management

🔧 Construction & Heavy Industry

• Outdoor engineering – measuring distances on roads, bridges, and construction sites

• Infrastructure planning and development

• Using Pythagorean mode for inaccessible height measurements

🌳 Outdoor & Landscape

• Property boundary verification

• Landscape design measurements

• Outdoor construction projects

• Long-range measurements where extended range is essential

🎓 Educational Use

• Demonstrating measurement principles

• Practical teaching tool for construction and engineering students

Why Choose the UNI-T LM120A?

Safety & Maintenance

• Laser Safety: Class 2 laser (<1mW, 630-670nm) is safe for general use, but never aim the laser directly at eyes or reflective surfaces.

• Battery Care: Use 1.5V AAA alkaline batteries. Remove batteries if storing for extended periods to prevent leakage.

• Environmental Limits: Operate within 0-40°C; avoid extreme temperatures and humidity. Store at -20℃~60℃ with 20%~80% RH .

• Lens Cleaning: Keep the laser lens clean using a soft, dry cloth. Avoid touching optical surfaces with fingers.

• Avoid Strong Light: Ensure the target surface has good reflectivity; for dark or rough surfaces, use a reflective plate .

• Drop Protection: Avoid dropping or striking the device to prevent damage to internal components affecting accuracy .

• Storage: Store in a dry, ventilated place when not in use .

Error Codes & Troubleshooting

The LM120A displays error codes to help diagnose issues:

Customer Reviews & Verdict

The UNI-T LM120A is widely recognized as a reliable, accurate, and feature-rich laser distance meter that offers exceptional value for professionals and serious DIY enthusiasts. Its combination of 120m range, ±2mm accuracy, 99-group memory, and comprehensive measurement functions makes it a versatile tool for a wide range of applications .

The official UNI-T product page describes the LM A series as featuring "millimeter accuracy," "99 groups data storage," and "multiple functions: Max/Min/continuous measurement, data storage, etc" . The LM120A, as the flagship model of the series, delivers maximum range while maintaining all the professional features that make the series indispensable .

Positive Feedback

• Accuracy: Users confirm the device delivers reliable, millimeter-precise measurements .

• Build Quality: The ergonomic design with comfortable handling and durable construction provides confidence on job sites .

• Value for Money: The combination of 120m range, multiple functions, and 99-group memory offers exceptional value at its price point .

• Ease of Use: Intuitive interface and comfortable grip make it accessible for users of all experience levels.

Considerations

• Laser Type: Uses red laser (630-670nm), which may be less visible in bright sunlight compared to green laser models .

• Outdoor Use: For long-distance outdoor measurements in bright conditions, a target plate may be helpful .

Final Verdict

The UNI-T LM120A is a powerful, versatile, and accurate laser distance meter that delivers professional-grade performance at an accessible price point. Its 120m range, ±2mm accuracy, 99-group memory, and comprehensive measurement functions make it exceptionally well-suited for architects, construction professionals, surveyors, facility managers, and serious DIY enthusiasts who need maximum range and precision .

The official UNI-T product overview describes the LM A series as "new design to measure the distance precisely," capable of measuring "AREA, VOLUME, ADDITION, SUBTRACTION, etc easily" with "99 groups data storage" . The LM120A, as the extended-range model, is ideal for applications requiring measurements up to 120 meters
