UNI-T LM100D 100m Laser Distance Meter: The Ultimate Guide

Overview

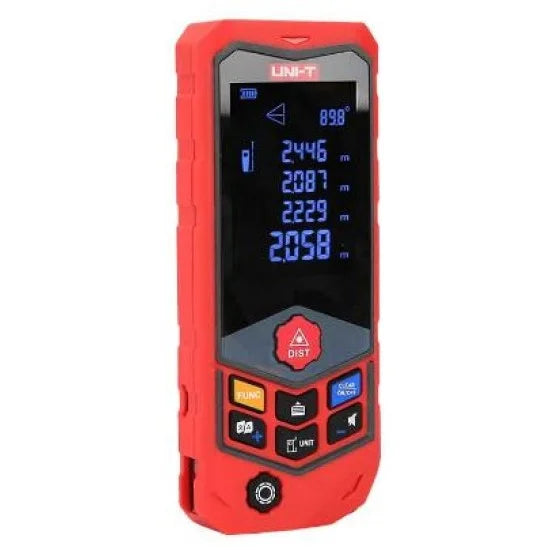

The UNI-T LM100D is an advanced, professional-grade laser distance meter engineered for architects, construction workers, interior designers, and surveyors who demand precision, versatility, and innovative measurement capabilities. As part of UNI-T's innovative D-series, this instrument features a unique roller wheel design that enables curved surface measurement—a capability not found in standard laser distance meters .

Designed to tackle the most challenging measurement scenarios, the LM100D delivers reliable distance measurements up to 100 meters with exceptional ±2mm accuracy, while offering an extensive suite of 12 measurement modes including triangle area, trapezoid, displacement, and electronic leveling functions . Its robust IP65 dust and water resistance and 2-meter drop protection make it ideal for harsh job site conditions .

Key Features at a Glance

• Innovative Curved Surface Measurement: Unique roller wheel design allows for measuring curved surfaces, arcs, and irregular shapes—a feature that sets it apart from conventional laser distance meters .

• 100m Long Range with High Accuracy: Measures distances up to 100 meters with professional-grade accuracy of ±(2mm + 5×10⁻⁵D) , ensuring reliable results for demanding applications .

• 12 Comprehensive Measurement Modes: Includes single/continuous measurement, area/volume, Pythagoras, triangle area, trapezoid, displacement, Max/Min, addition/subtraction, and more—covering virtually every measurement scenario .

• Electronic Leveling & Angle Measurement: Built-in electronic leveler with ±90.0° angle measurement for automatic horizontal and vertical leveling, ensuring accurate alignment .

• Voice Indication & Audio Feedback: Integrated buzzer and voice indication provides clear audio confirmation of measurements, ideal for situations where the display isn't visible .

• Large 2.4" EBTN HD Display: High-definition, easy-to-read EBTN display with auto-backlight and wide viewing angles for excellent visibility in all lighting conditions .

• Line Laser Marking Function: Projects a visible laser line for marking and alignment tasks, adding versatility to the instrument .

• 20-Group Data Memory: Stores up to 20 measurements for convenient recall and documentation, eliminating manual note-taking on site .

• Rugged Industrial Design: IP65 dust and water resistant with certified 2-meter drop protection, ensuring reliable operation in harsh construction environments .

• Multiple Reference Points: Selectable measurement from front, middle, or rear of device for maximum flexibility in corners, recesses, and various measuring situations .

• Auto Power-Off Functions: Conserves battery life with automatic laser shut-off after 30 seconds, backlight off after 10 seconds, and device shut-off after 3 minutes of inactivity .

• Comprehensive Unit Selection: Switchable between meters, feet, inches, and combination units to suit regional preferences .

Detailed Specifications

Measurement Specifications

Measurement Functions

General Specifications

What's in the Box

Key Functions & Operation

1. Innovative Curved Surface Measurement

• The LM100D's standout feature is its roller wheel design for measuring curved surfaces .

• Simply roll the wheel along any curved surface—the device accurately calculates the curve length.

• Application: Ideal for measuring curved walls, pipes, architectural features, and irregular shapes where standard laser meters cannot function.

2. Single Distance Measurement

• Press the power button to activate the device and laser.

• Aim the laser dot at the target surface.

• Press the measure button to instantly display the distance on the large 2.4" EBTN display .

3. Continuous Measurement (Tracking Mode)

• Press and hold the measure button to enter continuous measurement mode.

• Move the device while the display updates in real-time.

• Release the button to lock the final measurement.

• Ideal for finding minimum/maximum distances or measuring room diagonals .

4. Area, Volume & Advanced Geometric Calculations

• Select area, volume, triangle area, or trapezoid function from the mode menu .

• Measure the required dimensions; the device automatically calculates and displays the result.

• Saves time and eliminates calculation errors.

5. Pythagoras (Indirect) Measurement

• Use this function to measure heights or distances that are inaccessible (e.g., measuring building height from the ground).

• The device uses the Pythagorean theorem to calculate the desired dimension based on two or three measured sides .

6. Electronic Angle Measurement & Leveling

• The built-in electronic leveler measures angles up to ±90.0° with high accuracy .

• Automatic horizontal and vertical leveling functions ensure accurate alignment .

• Application: Perfect for checking slopes, inclines, and ensuring level installations.

7. Voice Indication & Audio Feedback

• The LM100D features integrated voice indication and buzzer for clear audio confirmation of measurements .

• Particularly useful in situations where the display isn't visible, such as above-head measurements or tight spaces.

8. Line Laser Marking

• The line laser marking function projects a visible laser line for alignment and marking tasks .

• Application: Useful for layout work, marking cut lines, and alignment during installation.

9. Displacement Measurement

• Measure the distance between two points without moving the device.

• Ideal for measuring room dimensions, window openings, and recessed areas .

10. Data Memory

• The LM100D stores up to 20 groups of measurement results .

• Recall saved measurements for review or documentation, facilitating efficient data management on site.

11. Reference Plane Selection

• Choose between measuring from the front, middle, or rear of the device using the reference button .

• Allows for flexible measurement options in corners, recesses, or when using the device against walls.

12. IP65 Protection & 2-Meter Drop Resistance

• Fully protected against dust ingress and water jets, ensuring reliable operation in challenging job site conditions .

• Certified to withstand accidental falls from ladders and scaffolding up to 2 meters .

LM100D vs. Standard Laser Distance Meters

Applications

The UNI-T LM100D is an ideal all-in-one tool for:

🏗️ Construction & Building

• Measuring room dimensions, wall lengths, and ceiling heights up to 100m

• Calculating material quantities for flooring, tiling, and drywall

• Verifying structural dimensions and layouts

• Curved surface measurement for architectural features and irregular walls

🏠 Interior Design & Renovation

• Planning furniture placement and room layouts

• Measuring for custom cabinetry and built-ins

• Calculating paint, wallpaper, and flooring requirements

• Space planning and interior decoration

📐 Architecture & Engineering

• Site surveys and preliminary measurements

• Creating accurate floor plans and elevations

• Engineering inspections and surveys

• Technical monitoring and supervision

🏭 Facility Management & Real Estate

• Property measurement and space assessment

• Real estate development and appraisal

• Facility planning and space optimization

• Production facility supervision

🔧 Construction & Heavy Industry

• Measuring pipe diameters and curved surfaces

• Industrial equipment layout and installation

• Warehouse racking and storage system planning

• IP65 rated for harsh construction environments

🌳 Outdoor & Landscape

• Property boundary verification

• Landscape design measurements

• Outdoor construction projects

🎓 Educational Use

• Demonstrating advanced measurement principles

• Practical teaching tool for construction and engineering students

Why Choose the UNI-T LM100D?

Customer Reviews & Verdict

The UNI-T LM100D is widely recognized as an innovative solution for professionals who need to measure curved surfaces and irregular shapes—a task impossible with conventional laser distance meters. Its combination of advanced features, rugged durability, and unique roller wheel design sets it apart in the market.

Positive Feedback

• Unique Roller Wheel Design: Users praise the curved surface measurement capability for solving problems that standard laser meters cannot address .

• Voice Indication: The audio feedback feature is highly valued for measurements in awkward positions where the display isn't visible.

• Build Quality: The IP65 rating and 2-meter drop protection provide confidence in demanding job site environments .

• Comprehensive Functions: The 12 measurement modes cover virtually every professional requirement.

• Display Quality: The large 2.4" EBTN screen with auto-backlight is frequently highlighted as a major advantage .

Considerations

• Battery Type: Uses 3× AAA batteries (included) which are readily available worldwide .

• Weight: At just 125g, it's lightweight and portable for all-day carry .

• Learning Curve: The extensive 12-mode functionality may require some familiarization for new users.

• Outdoor Use: Like all laser meters, bright sunlight may reduce visibility of the laser dot; a target plate is recommended for long-distance outdoor measurements .

LM100D vs. Standard Series Models

The LM100D belongs to UNI-T's advanced D-series, which differs from the standard LM series (LM40-LM150) in key features:

Important Note: LM100D vs. LM100D PRO

Some distributor listings reference a PRO version of the LM100D that includes additional features :

This description is specifically for the standard LM100D model. For the PRO version with Bluetooth and app connectivity, please refer to the UNI-T LM100D PRO product page.

Final Verdict

The UNI-T LM100D represents an innovative leap forward in laser distance measurement technology. Its unique roller wheel design for curved surface measurement opens up new possibilities for architects, designers, and construction professionals working with irregular shapes and curved surfaces—tasks impossible with conventional laser meters .

Beyond its signature feature, the LM100D delivers professional-grade performance across the board: 100m range, ±2mm accuracy, 12 measurement modes, electronic angle measurement, voice indication, and IP65 rugged durability .

The official UNI-T LM100D product page describes it as featuring "Ergonomic exterior, comfortable handling," "Millimeter accuracy," "Large, HD display," "Auto voice and audio indication," "Curvature measurement, test curve length via the roller," and "Convenient angle measurement via electronic leveling" —credentials that speak to its professional-grade design and innovative capabilities.

Whether you're measuring standard distances, calculating complex geometric areas, or tackling curved surfaces that stump conventional tools, the LM100D delivers the precision, versatility, and durability you need. With its large 2.4" EBTN display, intuitive operation, rugged construction, and unique roller wheel, it's a smart investment for any professional who values comprehensive measurement capability
