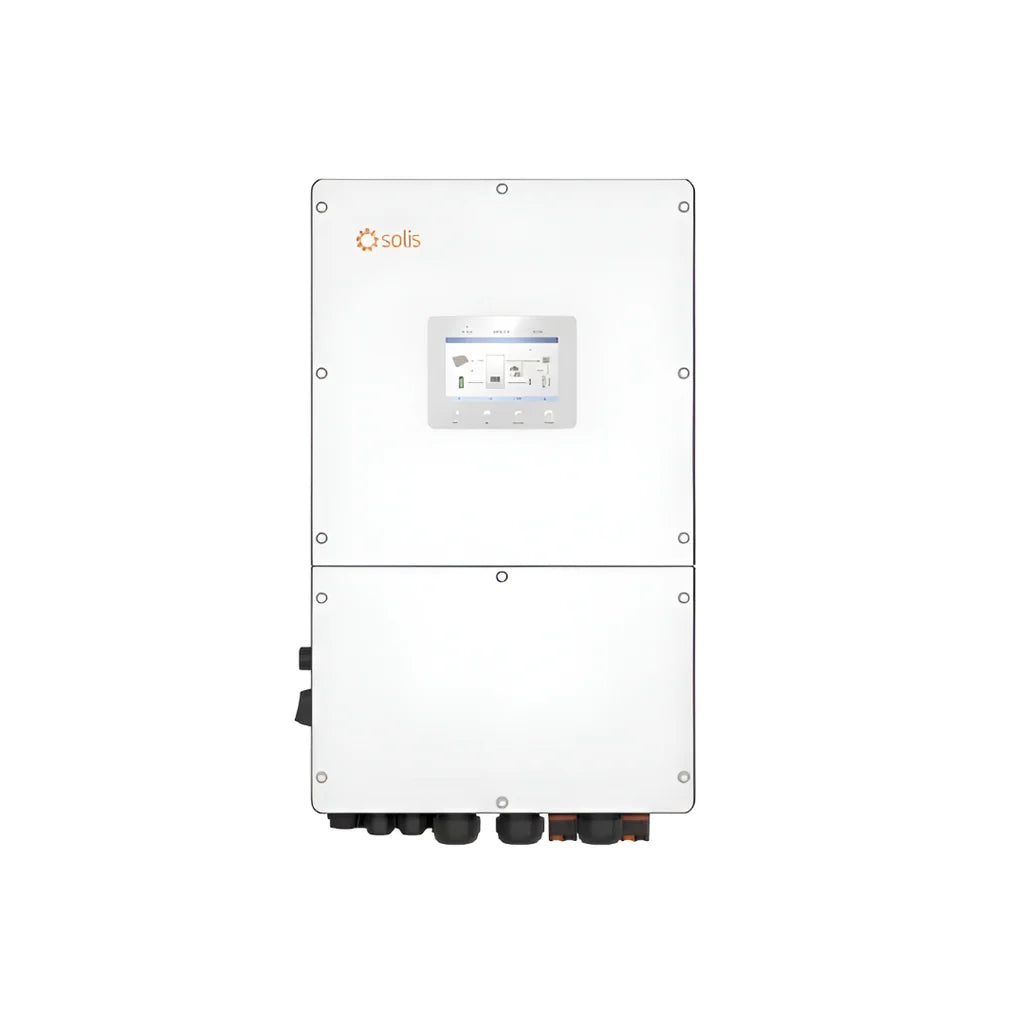

Solis S6 30kW High-Voltage Hybrid Inverter

The Solis S6 30kW is a high-voltage, three-phase hybrid inverter engineered for commercial and industrial solar-plus-storage systems . With its robust IP66 enclosure and -25°C to 60°C operating range, it is ideal for outdoor installations in harsh climates .

Key Features:

• Power & Performance: 30kW nominal output, 60kW max PV input, and up to 98.5% efficiency .

• PV & Battery Flexibility: 3 MPPT trackers (up to 4 on some models) accept 1000V DC input, and two independent battery ports support 150–800V lithium batteries (100-280Ah modules) with 140A fast charging .

• Advanced Control: Features a 7-inch touchscreen, remote monitoring via SolisCloud, and a "three-in-one" generator/wind/PV input .

• Reliable Backup: UPS-grade switchover (<10ms) supports 160% overload for 2 seconds to start heavy loads .

• Scalable: Supports parallel operation of up to 6 to 10 units, reaching up to 300kW or more .

Key Specifications:

• Rated Power: 30kW

• Max PV Input: 60kW

• Battery: High Voltage (150-800V)

• MPPTs: 3 (up to 4 on some versions)

• Protection: IP66

  Download datasheet
