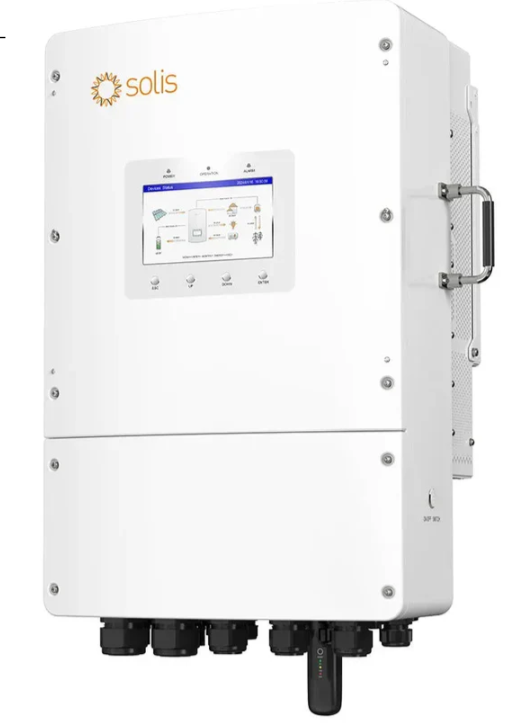

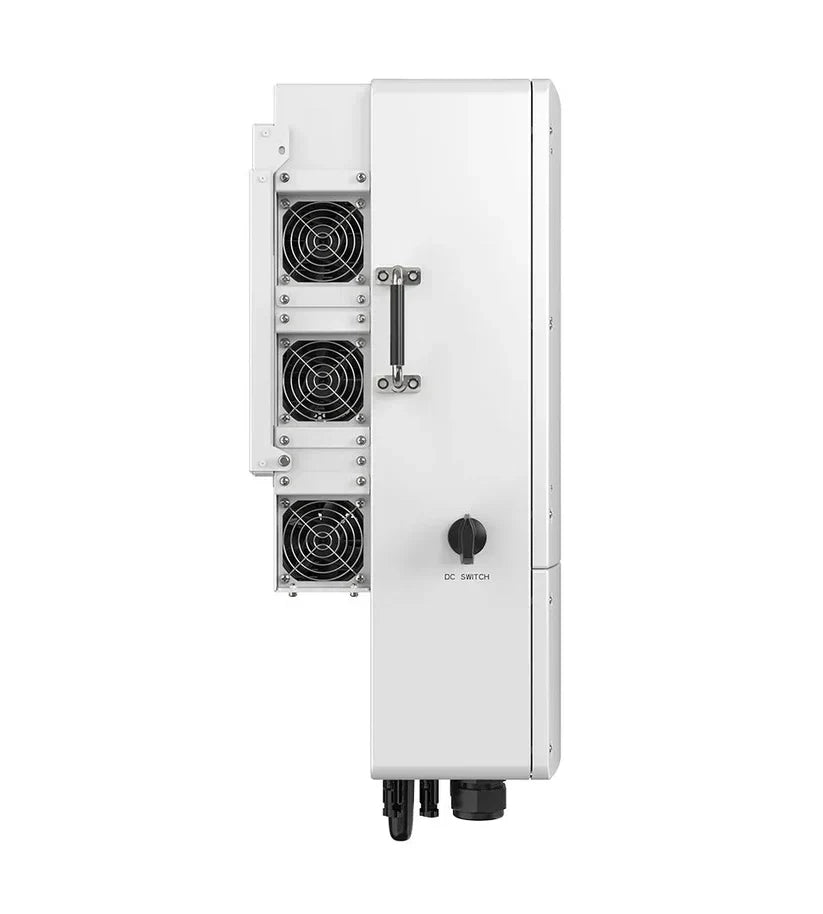

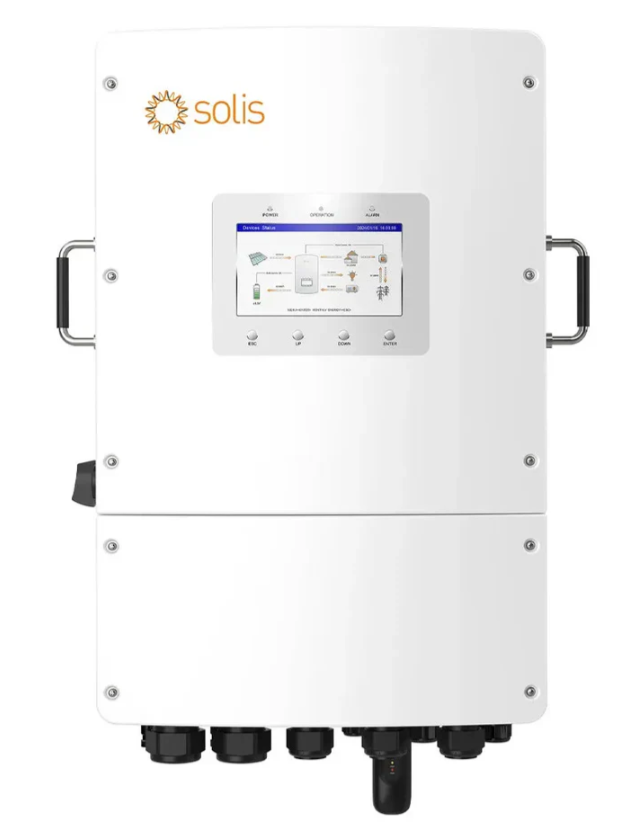

The Solis S6 12kW Single-Phase Hybrid Inverter (Model S6-EH1P12K03-NV-YD-L) is a high-capacity residential and small commercial energy storage solution. It's designed to work with 48V low-voltage batteries and is ideal for larger homes or businesses with high solar demands
Key Features:
-
Powerful Output: Delivers 12kW continuous single-phase output with a 200% surge capacity (24kW for 10 seconds) to start heavy loads like pumps and air conditioner
-
Flexible Solar Input: Features 3 independent MPPT trackers with a max PV input of 19.2kW and a 550V Voc, optimizing solar energy harvest
-
Battery Compatibility: Supports up to 250A charge/discharge current for 48V lithium-ion or lead-acid batteries, ensuring fast and efficient energy storage
-
Backup & UPS: Provides seamless backup power with a switch-over time of <4ms to <10ms and supports generator integration
-
Expandable & Durable: Can be paralleled up to 6 units (for up to 72kW), has an IP66 rating for outdoor use, and operates from -25°C to +60°C
Download Datasheet
