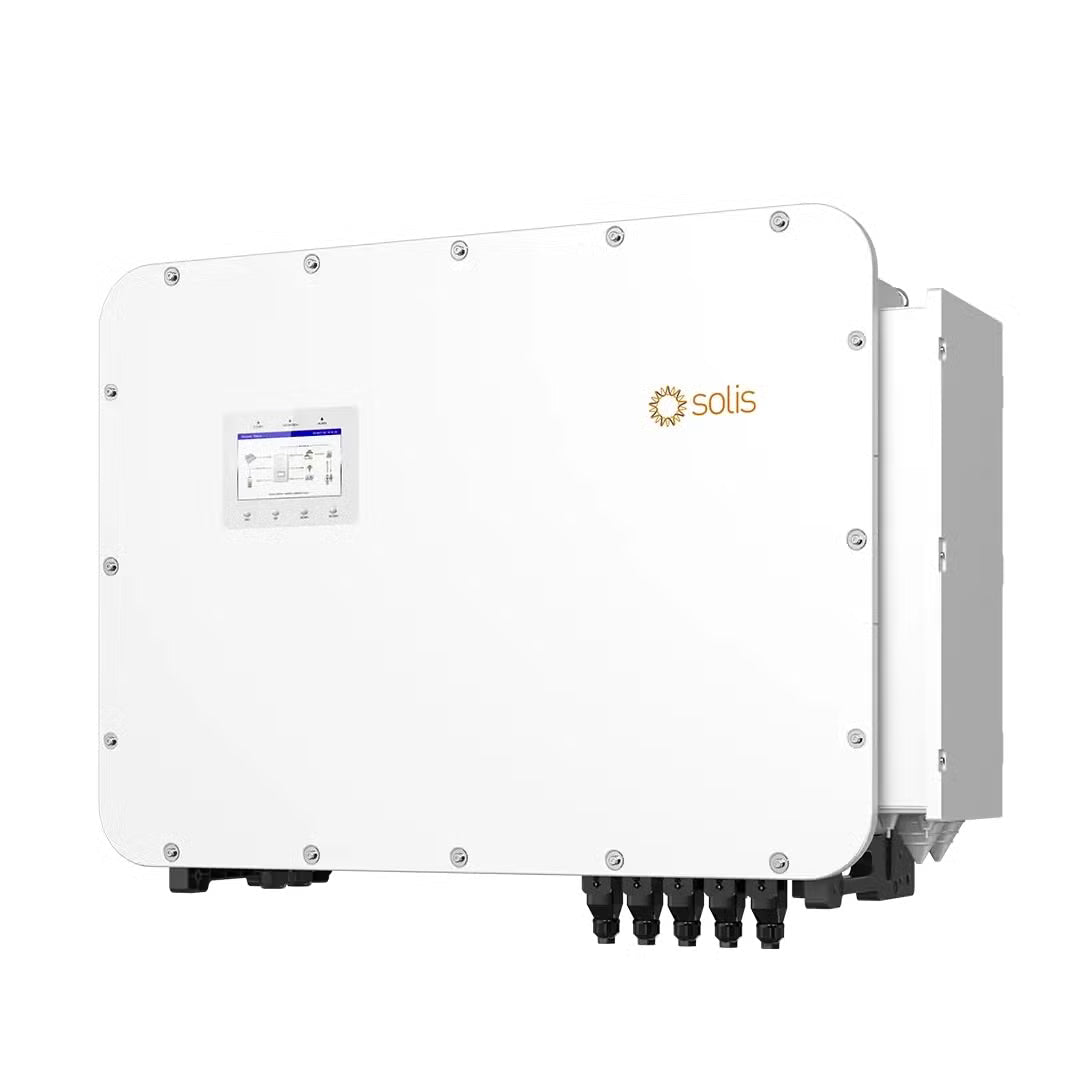

The Solis S6-EH3P125K10-NV-YD-H is a flagship, high-voltage three-phase hybrid inverter designed specifically for commercial and industrial (C&I) energy storage systems. It is a wall-mounted, scalable solution that combines MPPT, PCS, and grid-tied/off-grid switching with an intelligent EMS for unified control.
Key Features:
-
Highest in Its Class Output: Delivers 125kW of AC output power with a maximum efficiency of up to 97.6%, maximizing energy yield for large-scale projects.
-
Massive PV & Battery Input: Features 10 independent MPPT trackers (supporting up to 20 PV strings) with up to 200% DC/AC oversizing for flexible PV design. It also includes two independent battery ports supporting a total of 200A charge/discharge current, compatible with 100–314Ah battery modules.
-
Reliable Backup Power: Provides seamless UPS backup with a <10ms on/off-grid switchover and an industry-leading 200% overload capacity for 200ms to start heavy loads like air conditioners and elevators.
-
Designed for Harsh Environments: Rated IP66, making it dust-tight and resistant to powerful water jets, suitable for direct outdoor installation in demanding conditions.
-
Scalable & Smart: Supports parallel operation of up to 6 units (totaling 750kW) and integrates with SolisCloud AI for smart peak shaving, Time-of-Use management, and generator hybrid control.
Specifications:
-
Rated Power: 125 kW
-
Max. PV Input: Up to 250 kW (200% oversizing)
-
MPPT Trackers: 10 (20 Inputs)
-
Battery: High-Voltage, 2 Ports (100A + 100A)
-
Backup: <10ms Switchover, 200% Overload
-
Protection: IP66
-
Dimensions (W x H x D): 1174 x 814 x 400 mm
-
Weight: ~170 kg
