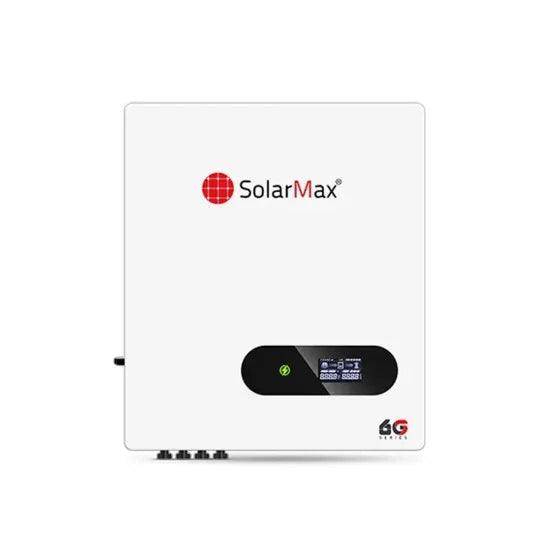

SolarMax SM-15K-6G3P (Three Phase) Built-in Bluetooth & WIFI DONGLE On-Grid Solar Inverter

Key Features:

• • Maximum Efficiency 98.3%: Ensures minimal energy loss during DC-to-AC conversion

  • Dual MPPTs: Supports two independent Maximum Power Point Trackers for optimal performance, especially in systems with multiple orientations or shading

  • Wide MPPT Operating Voltage Range: 160V–1000V for compatibility with various solar panel configurations

  • Rated AC Active Power: 15,000W for consistent, reliable power output

  • Surge Power Up to 16,700VA: Handles high surge loads without performance compromise

  • Wide AC Voltage Range: 260V–510V for seamless grid integration

  • Natural Cooling: Maintains optimal temperature for efficient, long-term operation

  • IP66 Rating: Superior dust and water resistance for outdoor installations

  • Comprehensive Protection Features:

    • DC reverse protection

    • Anti-islanding protection

    • Surge arresters

    • AC short circuit protection

    • Leakage current protection

  • Grid Integration: Compatible with various grid voltages and frequencies worldwide

  • Wireless Monitoring: Bluetooth and app connectivity for remote monitoring; optional RS485 and Wi-Fi interface

  • Operating Temperature Range: -25°C to 60°C for extreme climate conditions
