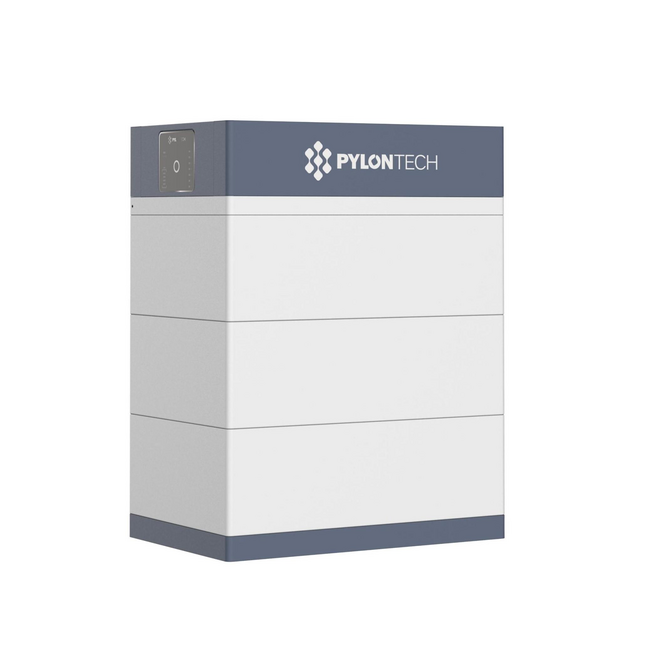

Pylontech Force H3 High-Voltage Battery System
The Pylontech Force H3 is a modular, stackable high-voltage (HV) lithium battery system designed for residential and small commercial solar storage applications . It utilizes reliable Lithium Iron Phosphate (LFP) cell chemistry and features an attractive, space-saving design with an IP55 rating for indoor and covered outdoor installation.
Key Features
-
Modular Scalability: Built on a 5.12kWh base module (FH10050), a single tower can be scaled from 10.2kWh up to 35.8kWh by stacking 2 to 7 modules. Up to 6 towers can be connected in parallel, achieving a maximum system capacity of up to 214.8kWh .
-
High-Voltage Architecture: The system operates at a nominal voltage range of 204.8V to 307.2V (depending on the number of modules), ensuring high efficiency and compatibility with modern high-voltage hybrid inverters .
-
Long Cycle Life: Engineered for durability with a cycle life of >8,000 cycles at 95% depth of discharge (DoD) and a 10-year product warranty.
-
Easy Installation: Features a plug-and-play stackable design that eliminates complex wiring. A full tower can be installed in significantly less time compared to traditional systems .
-
Integrated BMS: The system is managed by the FC1000 BMS controller, which provides comprehensive protection functions (over-discharge, over-charge, over-current, temperature) and communicates via CANBUS/Modbus RTU.
