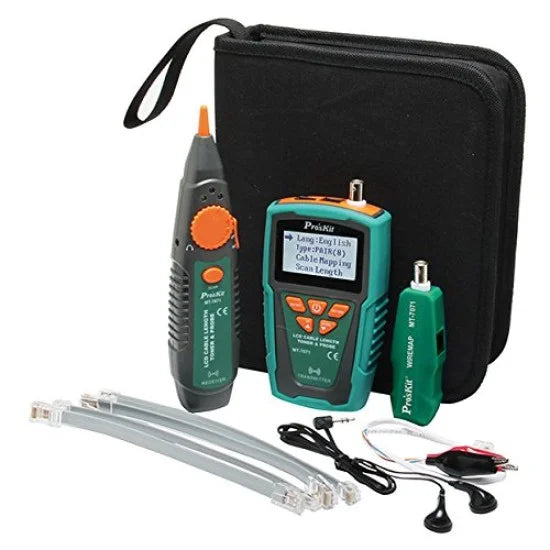

The Pro'sKit MT-7071 is a professional multi-function cable tester that combines a tone generator, probe, and cable length meter in one kit. It is designed for network, telecom, and AV technicians who need to install, verify, and troubleshoot various cable types.
Key Features:
-
Cable Length Measurement: Measures the length to an open on cables up to 1,200 meters without needing a remote end, using the cable's capacitance method.
-
Long-Distance Wire Tracing: Generates a tone that can be traced up to 3 kilometers with the receiver.
-
Cable Mapping & Verification: Tests and displays the wiring status (continuity, shorts, opens, miswires, crossover) on RJ45, RJ11/12, and BNC cables.
-
Calibration Memory: It can store up to 7 calibration parameters for different cable types to improve length measurement accuracy.
-
Safety Features: Includes a non-contact voltage (NCV) detection function (90~1000V AC) to identify live cables and a live circuit protection (AC 60V/DC 48V).
-
Expandable for 8 Remote Units: Supports up to 8 remote units (MT-7071U, sold separately) for mapping multi-point cable runs
