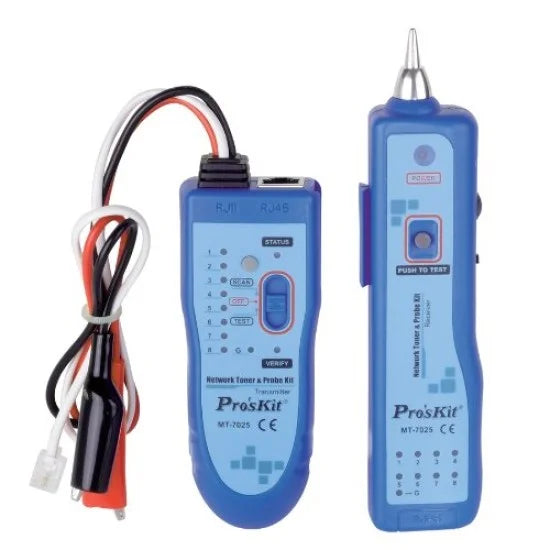

The Pro'sKit MT-7025 is a multi-function tone and probe kit designed for technicians working in telecommunications, networking, and cable TV maintenance . It combines a tone generator (transmitter) and an amplifier probe (receiver) to locate, trace, and test cables within complex network or telephone systems .
Key Features:
-
Cable Tracing: Locate cables up to 2 km away, even in crowded wiring closets or behind walls, using the transmitted audio signal .
-
Wire Mapping: Quickly diagnose the condition of LAN cables by scanning for continuity, open circuits, shorts, reversals, and crossed wiring .
-
Telephone Line Testing: The kit can identify shorts and opens on telephone lines and even check for DC polarity on live phone circuits .
-
User-Friendly Design: Features a visual signal indicator, LED light for dark workspaces, and a 3.5mm earphone jack for use in noisy environments.
-
Versatile Connectivity: Comes with RJ45, RJ11, and alligator clip connectors to adapt to various cable types and test scenarios
Specifications:
-
Signal Frequency: 1 kHz (Selectable single or dual-tone)
-
Max Transmission Distance: 2 km
-
Max Cable Map Distance: 300 m
-
Power: Both units powered by a single 9V battery (6F22)
