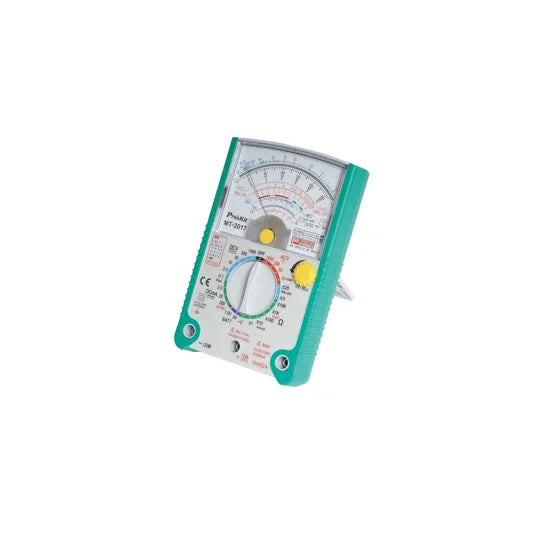

The Proskit MT-2017 is a professional-grade analog multimeter designed for accurate measurement of DC and AC voltage, current, resistance, capacitance, and more. It features a 26-range selector switch and can measure up to 1000V DC/AC and 10A DC.
Its key selling point is the comprehensive protective function, which includes overload protection (0.5A/10A fuses), a smart protective circuit with a resettable thermal fuse, and a mirrored aluminum dial plate for accurate readings-.
Key Features:
-
Versatile Functions: Measures DC/AC voltage, DC current, resistance, capacitance (2000µF max), battery, transistor, diode, LED, and continuity (buzzer).
-
Full Range Protection: Features anti-burn and overload protection on all ranges with multiple fuses.
-
User-Friendly Design: Robust protective holster, foldable stand for angled viewing, and a hook for hanging.
-
High Sensitivity: DC sensitivity of 20kΩ/V and AC sensitivity of 9kΩ/V.
-
Power Supply: Requires 2 x AAA batteries (1.5V) and 1 x 9V battery (NEDA1604).
Specifications:
-
Display: Analog (pointer with mirrored scale)
-
DC Voltage Range: 0.1/2.5/10/50/250/1000V
-
AC Voltage Range: 10/50/250/1000V
-
DC Current Range: 50µA/2.5mA/25mA/250mA/10A
-
Resistance Range: ×1/×10/×100/×1k/×10k
-
Size/Weight: Approx. 171 x 108 x 37mm / 370g
The Proskit MT-2017: A safe, reliable, and feature-rich analog multimeter for professional technicians and hobbyists.
