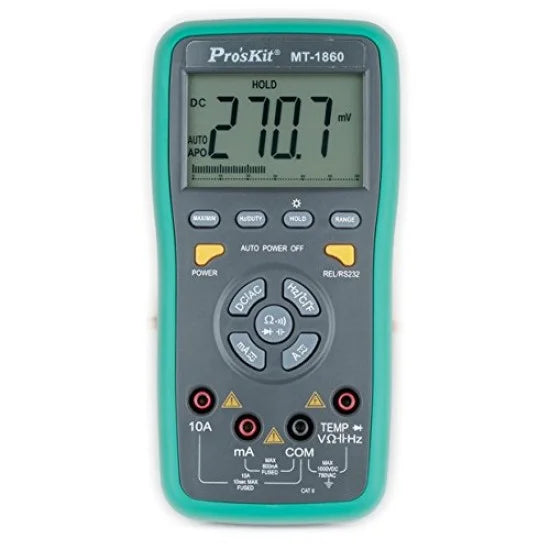

ProsKit MT-1860 Dual Display Digital Multimeter

The ProsKit MT-1860 is a professional, feature-rich digital multimeter designed for a wide range of electrical and electronic testing applications. It features a large 3 5/6 digit (5999-count) LCD with a 61-segment analog bargraph for dual-display monitoring, allowing you to see precise digital readings alongside trend indications.

Key Features:

• Dual Display with Bargraph: 68x47mm large LCD with 61-segment analog bargraph and 3 5/6 digits, max reading 5999.

• USB PC Connectivity: Built-in USB connector for monitoring and recording measurement data directly on a computer.

• Comprehensive Measurements: Measures DC/AC voltage (1000V/750V), DC/AC current (10A), resistance (60MΩ), capacitance (200μF), frequency (20MHz), and temperature (1000°C / 1832°F).

• Advanced Functions: Includes diode test, continuity buzzer, duty cycle, relative value (REL), Max/Min recording, data hold, and LCD backlight.

• Auto/Manual Ranging: Automatically selects the correct range with the option for manual override.

• User-Friendly Design: Key-touch operation replaces traditional rotary switch, with auto power off to conserve battery life.

• Safety: CAT II / CAT III safety rated with input alert and double-color shockproof housing.

Specifications:

• Display: 3 5/6 digit (5999), 61-segment analog bargraph

• Best Accuracy: 0.5%

• Power Source: 2 x AAA batteries

• Dimensions: 185 × 91 × 49 mm

• Weight: 410g
