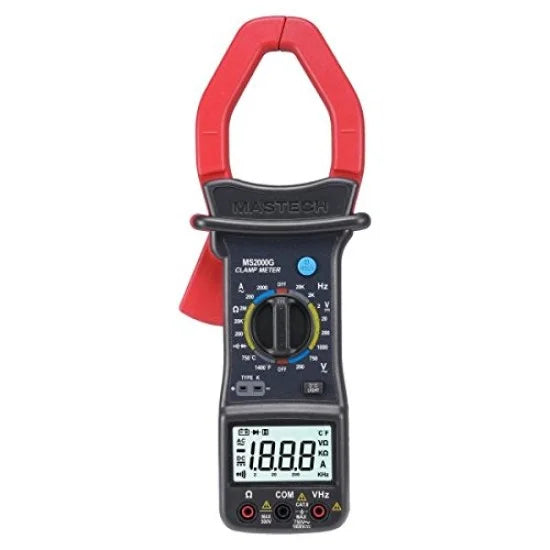

The Mastech MS2000G is a 3.5-digit (2000-count) digital clamp meter designed for heavy-duty AC current measurements up to 2000A on large conductors. It features a 55mm jaw opening for accommodating thick cables and busbars, making it suitable for industrial and electrical maintenance applications .
Key Features:
-
High AC Current: Measures AC current from 200A to 2000A with ±2.0%+5 accuracy .
-
Large Jaw Opening: 55mm (2.2 inches) for large cables .
-
Versatile Functions: Measures DC/AC voltage, resistance (200Ω to 2MΩ), frequency (20kHz), and temperature (-20°C to 750°C) via K-type thermocouple .
-
User-Friendly: Features data hold, LCD backlight, continuity buzzer (<30Ω/50Ω), and diode test.
-
Safety Rated: CAT II 1000V safety rating for secure operation .
Specifications:
-
Display: 1999 count, 3.5 digit
-
Power: 1 x 9V battery (6F22)
-
Weight: Approx. 200-400g
-
Dimensions: 282 x 104 x 47mm
