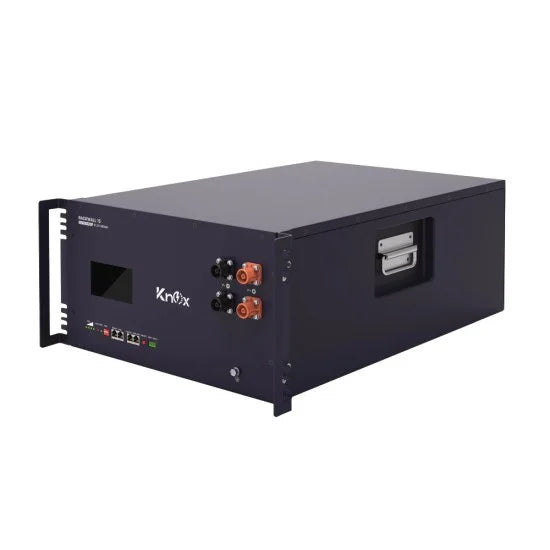

Knox Rack Wall 15 - 51.2V 280AH IP20 Touch LCD Display Lithium-Ion Battery

Key Features

• LCD Touchscreen Display:
  4.3” touch screen provides real-time SOC, diagnostics, and alarm notifications for easy monitoring and management.

• Smart Battery Management System (BMS):
  Built-in BMS ensures safe operation, reliability, and optimal battery performance.

• Advanced Communication Ports:
  Equipped with RS485, CAN, and Link-In/Out for seamless integration with inverters and chaining multiple batteries.

• Parallel Support:
  Allows up to 15 units in parallel for scalable energy storage solutions. (Series connection not supported.)

• Flexible Mounting Options:
  Can be wall-mounted or installed in a standard 19” rack, providing installation versatility.

• Compact & Durable Design:

  • Dimensions: 442 × 650 × 250 mm

  • Weight: 115.2 kg

  • IP Rating: IP20 (indoor use)

• Wide Operating Conditions:

  • Charge Temperature: 0°C to +55°C

  • Discharge Temperature: –20°C to +55°C

  • Humidity: 0–95% RH (non-condensing)
