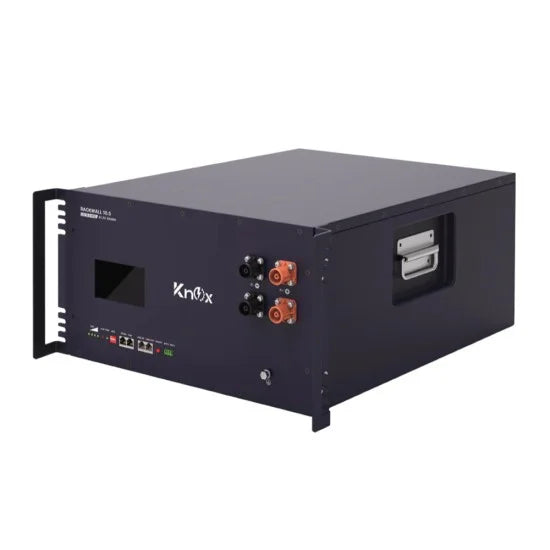

Knox Rack Wall 10.5 - 51.2V 200AH IP20 Touch LCD Display Lithium-Ion Battery

Key Features

• LCD Touchscreen Display:
  4.3” touch screen shows real-time system status, state of charge (SOC), alarms, and diagnostics for easy monitoring.

• Smart Battery Management System (BMS):
  Integrated BMS ensures safety, reliability, and optimal performance of the battery system.

• Advanced Communication Options:
  Includes RS485, CAN, and Link-In/Out ports for seamless connection with inverters and chaining multiple batteries.

• Parallel Support:
  Allows up to 15 units in parallel for scalable energy storage solutions. (Series connection not supported.)

• Flexible Mounting Options:
  Can be wall-mounted or installed in a standard 19” rack, providing installation versatility.

• Compact & Durable Design:

  • Dimensions: 442 × 550 × 250 mm

  • Weight: 83 kg

  • IP Rating: IP20 (indoor use)

• Wide Operating Range:

  • Charge Temperature: 0°C to +55°C

  • Discharge Temperature: –20°C to +55°C

  • Humidity: 0–95% RH (non-condensing)

Download Datasheet :
