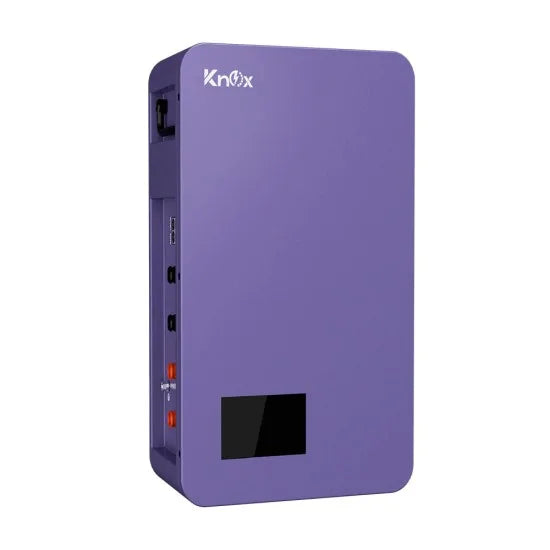

Knox Power Wall 3.1 - 25.6V 100AH IP20 Lithium-Ion Battery

Key Features

• Advanced Battery Management System (BMS):
  Integrated with comprehensive protection features, including over-voltage, low-voltage, over-current, overheating, and short-circuit safeguards to ensure maximum battery safety and longevity.

• Scalable Design:
  Supports parallel connection of up to 8 units for expanded energy capacity. (Series connection not supported.)

• Certified Safety & Compliance:
  Complies with major international standards — IEC62619, UL1973, UL9540A, CE, RoHS, UN38.3, and MSDS — ensuring top-tier quality, safety, and reliability.

• High Performance:
  Delivers a continuous charge/discharge current of 100A and a peak current of 120A, providing consistent and powerful energy delivery.

• Optimized Voltage Range:

  • Charge Voltage Range: 27.6V – 28.8V

  • End-of-Discharge Voltage: 24V

• Wide Operating Temperature Range:

  • Charge: 0°C to +55°C

  • Discharge: –20°C to +55°C
