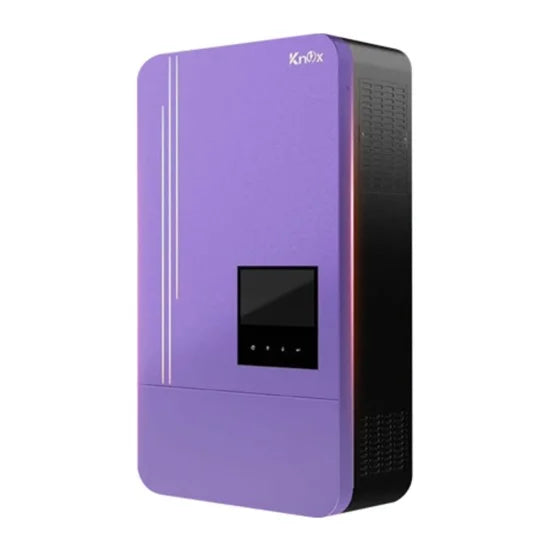

Knox Krypton 4.5kW PV 6500 Watt Hybrid Solar Inverter

Highlights

• High Power Output: Delivers up to 6500W rated output, suitable for medium to large solar power systems.

• Wide MPPT Range: Efficiently tracks solar input between 60VDC and 450VDC for maximum energy harvest.

• Versatile Power Compatibility: Supports both 230VAC 50/60Hz grid and generator inputs.

• Robust DC Charging Capability: Offers up to 100A DC output, ensuring fast and stable battery charging.

• Durable Design: IP21 protection rating ensures safe indoor operation and long-term reliability.

Technical Specifications

• Rated Power: 4500VA / 4500W

• DC Input: 24VDC, 208.4A

• AC Output: 230VAC, 50/60Hz, 19.5A

• Battery Output Power: 4500W

• AC Input: 230VAC, 50/60Hz, 30A

• DC Output: 27VDC, Maximum 100A

• Rated Output Power: 6500W

• Nominal Operating Voltage: 170VDC

• Maximum Solar Voltage: 500VDC

• MPPT Voltage Range: 60VDC – 450VDC

• PV Maximum Current: 40A

• Operating Temperature Range: -10°C to +50°C

• Ingress Protection Rating: IP21 (Indoor Use)

Download datasheet
