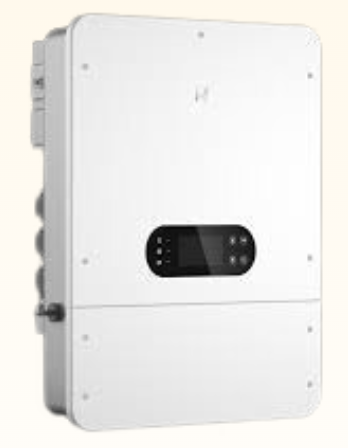

The GoodWe GW10KET-L-G10 is a high-performance, 10kW three-phase solar inverter designed for residential and small commercial photovoltaic systems. As part of GoodWe's advanced ET series, this inverter combines cutting-edge technology with robust engineering to deliver maximum energy yield, enhanced safety features, and comprehensive monitoring capabilities .
Engineered for modern solar installations, the GW10KET-L-G10 features dual MPPT (Maximum Power Point Tracking) technology with a wide input voltage range, allowing for flexible solar panel configurations and optimized energy harvest even in partial shading conditions . With its compact design, integrated DC switch, and IP65 protection rating, this inverter is built to withstand harsh environmental conditions while delivering reliable performance year after year .
10kW Rated Output Power: Delivers robust 10kW AC power output, ideal for larger residential homes and small commercial installations .
Three-Phase Grid Connection: Designed for three-phase electrical systems, providing balanced power distribution and compatibility with modern grid requirements .
Dual MPP Trackers: Features two independent MPP trackers with a wide input voltage range of 110V-550V, enabling flexible panel configuration and maximizing energy harvest .
High Efficiency: Maximum efficiency of up to 97.5% with European efficiency of 96.7%, ensuring minimal energy losses during DC to AC conversion .
Integrated DC Switch: Built-in DC disconnect switch enhances installation and maintenance safety by allowing DC side isolation .
Wide Input Voltage Range: MPPT operating voltage range of 110V-550V with maximum input voltage of 600V, accommodating various solar panel configurations .
IP65 Protection Rating: Weatherproof design suitable for both indoor and outdoor installation, with protection against dust and water jets .
Natural Cooling Technology: Fanless, natural convection cooling design ensures silent operation, enhanced reliability, and reduced maintenance requirements .
Integrated Monitoring: Built-in Wi-Fi connectivity for real-time monitoring via the GoodWe SEMS app, allowing users to track system performance from anywhere .
User-Friendly Display: Intuitive LCD display and touch buttons provide easy access to system status, performance data, and configuration settings .
Comprehensive Protection: Integrated with multiple protection features including DC reverse polarity, islanding protection, overcurrent protection, and overvoltage protection .
5-Year Warranty: Backed by GoodWe's standard 5-year warranty (extendable options available), ensuring long-term peace of mind .
| Specification | Detail |
|---|---|
| Model | GW10KET-L-G10 |
| Brand | GoodWe |
| Max. DC Input Power | 13kW |
| Max. DC Input Voltage | 600V |
| MPPT Operating Voltage Range | 110V – 550V |
| Start-up Voltage | 150V |
| Number of MPP Trackers | 2 |
| Max. Input Current per MPPT | 22A |
| Max. Short Circuit Current per MPPT | 28.6A |
| Number of DC Inputs | 2 (1 per MPPT) |
| Specification | Detail |
|---|---|
| Rated AC Output Power | 10,000W (10kW) |
| Max. AC Output Power | 11,000W |
| Max. AC Output Current | 16.7A |
| Rated AC Voltage | 230/400V (Three-Phase) |
| AC Grid Frequency | 50Hz / 60Hz |
| Power Factor (cos φ) | 0.8 leading – 0.8 lagging, adjustable |
| THDi | < 3% (Total Harmonic Distortion) |
| AC Grid Connection Type | Three-Phase (L1, L2, L3, N, PE) |
| Specification | Detail |
|---|---|
| Max. Efficiency | 97.5% |
| European Efficiency | 96.7% |
| MPPT Efficiency | 99.9% |
| Night Power Consumption | < 1W |
| Feature | Availability |
|---|---|
| DC Reverse Polarity Protection | ✓ |
| DC Switch (Integrated) | ✓ |
| Islanding Protection | ✓ |
| AC Overcurrent Protection | ✓ |
| AC Overvoltage Protection | ✓ |
| Ground Fault Monitoring | ✓ |
| String Monitoring | Optional |
| AFCI (Arc Fault Circuit Interrupter) | Optional |
| Specification | Detail |
|---|---|
| Enclosure Protection Rating | IP65 (dust tight, water jet protected) |
| Cooling Concept | Natural convection (fanless) |
| Operating Temperature Range | -25°C to +60°C |
| Relative Humidity | 0% – 100% (condensing) |
| Max. Operating Altitude | 4000m |
| Display | LCD with touch buttons |
| Communication Interfaces | Wi-Fi (built-in), RS485, DRM (optional) |
| Dimensions (W×H×D) | 500mm × 370mm × 170mm |
| Product Net Weight | 22kg |
| Mounting | Wall-mounted |
| Warranty | 5 years (extendable) |
| Certifications | CE, VDE, G98, AS4777, etc. (varies by region) |
| Item | Quantity |
|---|---|
| GoodWe GW10KET-L-G10 Inverter | 1x |
| Wall Mounting Bracket | 1x |
| DC Connectors | 4x (2 pairs) |
| AC Connector | 1x |
| Wi-Fi Antenna | 1x |
| User Manual & Quick Installation Guide | 1x |
Two independent MPP trackers allow for optimal configuration of solar panels with different orientations or tilts .
Maximizes energy harvest even in partial shading conditions by isolating affected strings .
Each MPPT supports up to 22A input current, compatible with high-power solar modules .
Maximum efficiency of 97.5% ensures minimal energy loss during DC to AC conversion .
Wide MPPT voltage range (110V-550V) allows for longer strings and reduced DC losses .
European efficiency of 96.7% guarantees excellent performance across varying irradiance levels .
Built-in DC disconnect switch enhances safety during installation and maintenance .
Allows for complete DC side isolation without requiring external components .
Compliant with international safety standards .
Dust-tight and protected against water jets from any direction .
Suitable for both indoor and outdoor installation, including exposed wall mounting .
Reliable operation in rain, snow, and dusty environments .
Zero moving parts eliminate fan noise and reduce maintenance requirements .
Enhanced reliability through passive cooling technology .
Ideal for noise-sensitive residential installations .
Built-in Wi-Fi enables real-time monitoring through the GoodWe SEMS app .
Track energy production, system status, and historical performance from anywhere .
Receive alerts and notifications for system events and maintenance needs .
Adjustable power factor from 0.8 leading to 0.8 lagging .
Grid voltage and frequency regulation capabilities .
Compliant with various international grid codes .
The GoodWe GW10KET-L-G10 is ideally suited for:
Homes with high energy consumption requiring substantial solar generation .
Three-phase electrical systems typical in modern residential construction .
Integration with home energy management systems .
Offices, retail spaces, and light industrial facilities .
Flat-roof or ground-mount solar installations .
Businesses seeking to reduce electricity costs and carbon footprint .
Farms, barns, and agricultural facilities with available roof or ground space .
Powering irrigation systems, equipment, and processing facilities .
Small to medium industrial operations with three-phase power .
Manufacturing facilities seeking to offset daytime energy consumption .
Warehouses with large roof areas for solar panel installation .
Shared solar installations serving multiple households .
Schools, community centers, and public facilities .
| Feature | Benefit |
|---|---|
| 10kW Three-Phase Output | Robust power capacity for larger homes and small commercial applications . |
| Dual MPPT Technology | Optimized energy harvest with flexible panel configurations and partial shading tolerance . |
| 97.5% Peak Efficiency | Exceptional conversion efficiency maximizing return on investment . |
| Built-in DC Switch | Enhanced installation and maintenance safety without additional components . |
| IP65 Weatherproof Rating | Reliable outdoor installation capability in any weather condition . |
| Fanless Natural Cooling | Silent operation and reduced maintenance with zero moving parts . |
| Integrated Wi-Fi Monitoring | Real-time system tracking via SEMS app with no extra hardware required . |
| 5-Year Warranty | Long-term peace of mind backed by GoodWe's global service network . |
The GoodWe SEMS (Smart Energy Management System) platform provides comprehensive monitoring and management:
Real-time Data: Live production and consumption data at your fingertips .
Historical Analysis: Daily, monthly, and yearly performance reports .
System Alerts: Immediate notifications for system events and faults .
Remote Control: Compatible with GoodWe batteries for energy management .
Multi-System Management: Monitor multiple installations from a single account .
Mounting: Wall-mounted using included bracket; ensure wall can support 22kg weight .
Ventilation: Allow adequate clearance around inverter for proper cooling .
DC Input: Compatible with standard solar panel configurations; ensure MPPT voltage range .
AC Connection: Requires three-phase electrical connection by qualified electrician .
Compliance: Verify local grid code compliance and obtain necessary approvals .
The GoodWe GW10KET-L-G10 complies with international standards including:
CE (European Conformity)
VDE (German grid code)
G98/G99 (UK grid codes)
AS4777 (Australian grid code)
EN 62109 (Safety standards)
IEC 62109 (International safety)
The GoodWe GW10KET-L-G10 is a powerful, efficient, and reliable three-phase solar inverter that delivers professional-grade performance for larger residential and small commercial applications. Its 10kW output capacity, dual MPPT technology, 97.5% peak efficiency, and comprehensive monitoring capabilities make it an excellent choice for maximizing solar energy harvest and return on investment.
The official GoodWe product line highlights the ET series for its "high efficiency, flexible application, and smart energy management" capabilities . With its IP65 weatherproof design, fanless cooling, and integrated safety features, the GW10KET-L-G10 is built to deliver reliable performance for decades.
