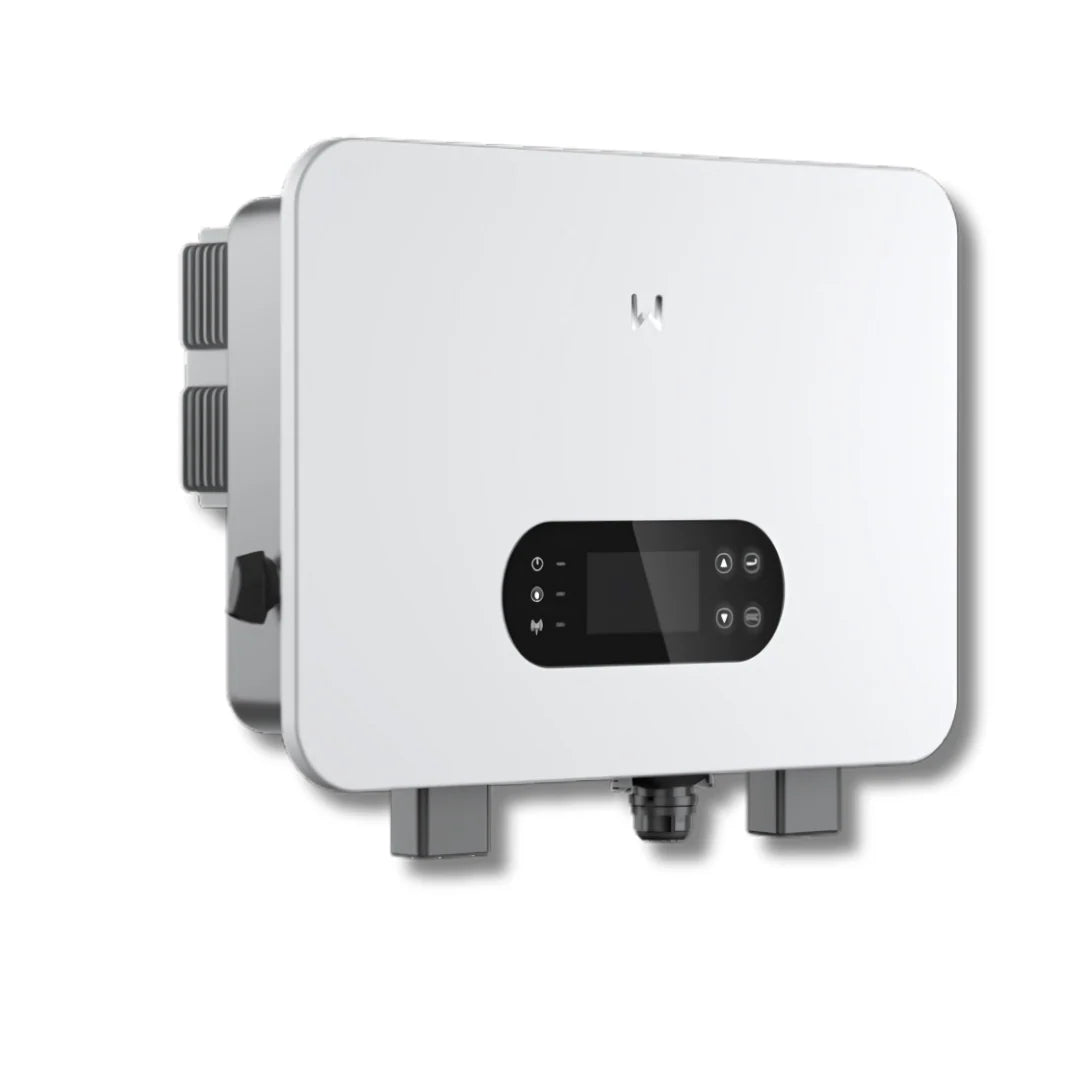

Goodwe 12kw Single Phase Hybrid Inverter

The GoodWe 12kW Single-Phase Hybrid Inverter (Model: GW12K-ES-C10) is a powerful, low-voltage (48V) energy storage solution from the ES Uniq Series, designed for residential and light commercial applications . It efficiently manages solar energy, battery storage, and grid power to maximize self-consumption and provide reliable backup during outages

Key Features

• High Power Output: Delivers 12kW continuous power, with peak capacity of 13.2kW (surge up to 24kW for 10 seconds) to handle heavy loads

• Low-Voltage Battery Compatibility: Operates with a standard 48V battery system, ensuring safety and compatibility with a wide range of lithium and lead-acid batteries

• Scalable Design: Supports parallel connection of up to 16 units, allowing for easy system expansion as energy needs grow

• Seamless Backup: Provides fast <10ms UPS-level switching to backup mode, ensuring uninterrupted power for critical appliances during grid failures

• Smart PV Management: Features 2 MPPT trackers with a maximum 600V input, supporting up to 24kW of PV power and 200% oversizing for optimal solar energy harvest

• Durable & Quiet: Rated IP66 for dust and water resistance, operates silently (<30dB to <45dB) in temperatures from -35°C to +60°C, making it suitable for both indoor and outdoor installation
  Download Datasheet
