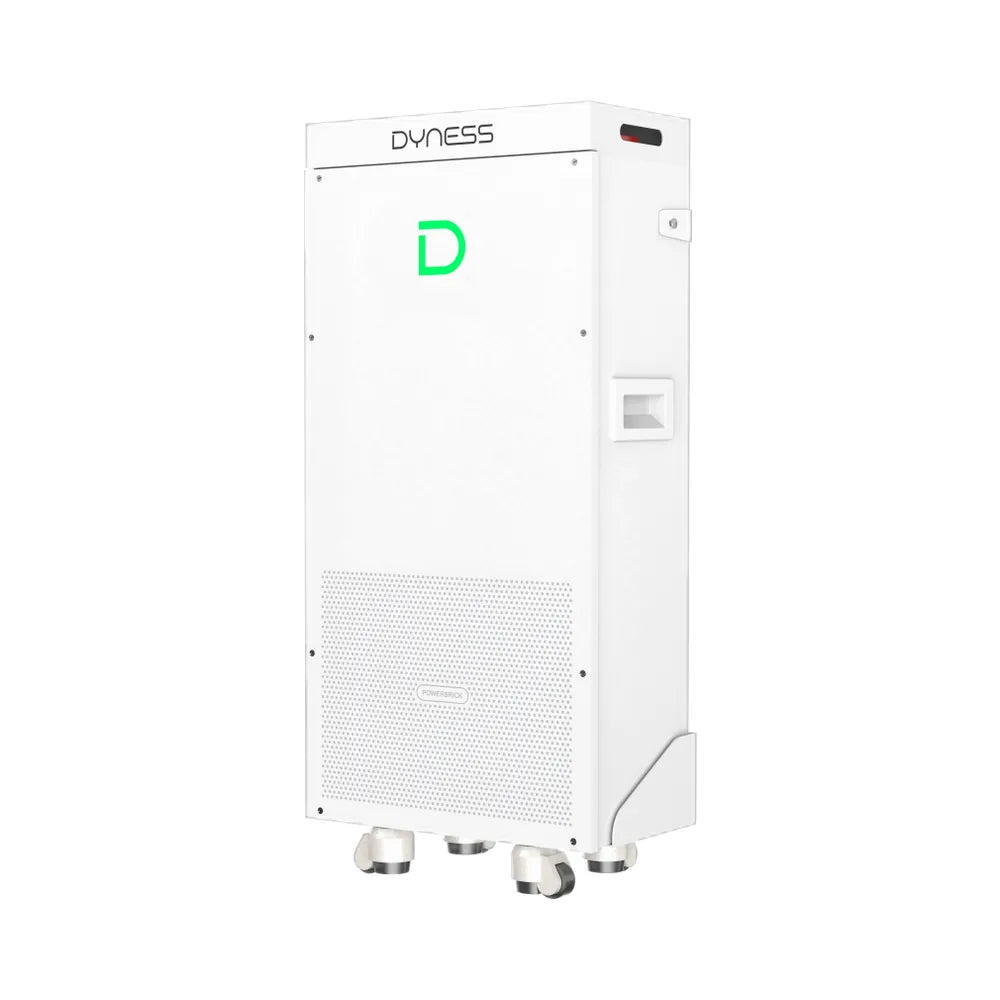

Dyness PowerBrick Max IP20 16kWh LV Lithium Battery

Overview

The Dyness PowerBrick Max is a sleek, low-voltage lithium battery designed for household energy storage. Built with high-capacity 314Ah LiFePO4 cells, it offers a robust solution for homes looking to maximize solar self-consumption or secure backup power.

Key Features

• Massive Capacity: Provides 16.07kWh of nominal energy (15.27kWh usable) with support for up to 50 parallel units, expanding to 803.5kWh.

• High Power Output: Supports a maximum charge/discharge power of 10.24kW with a fast current of 200A, allowing it to handle multiple heavy loads simultaneously.

• Flexible Installation: Can be wall-mounted or floor-mounted. Features movable wheels for easy transport and setup.

• Advanced Safety: Includes an intelligent aerosol fire extinguishing system that detects and suppresses fires within 5 seconds.

• Durable & Reliable: Utilizes LiFePO4 (LFP) chemistry for 8,000+ cycles and comes with a 10-year warranty.

• Smart Monitoring: Features built-in WIFI and APP connectivity for real-time monitoring via mobile device.

• Wide Compatibility: Works seamlessly with major inverter brands including GoodWe, Growatt, Solis, Deye, SMA, and Victron Energy.

Technical Specs

• Nominal Voltage: 51.2V

• Dimensions (W/D/H): 435/233/857mm

• Weight: 116kg

• IP Rating: IP20 (Indoor)

• Temperature Range: Standard charging 0℃ to 55℃ (optional -20℃ to 55℃)

The Dyness PowerBrick Max: Reliable, high-capacity energy storage for the modern home.

Download DataSheet
