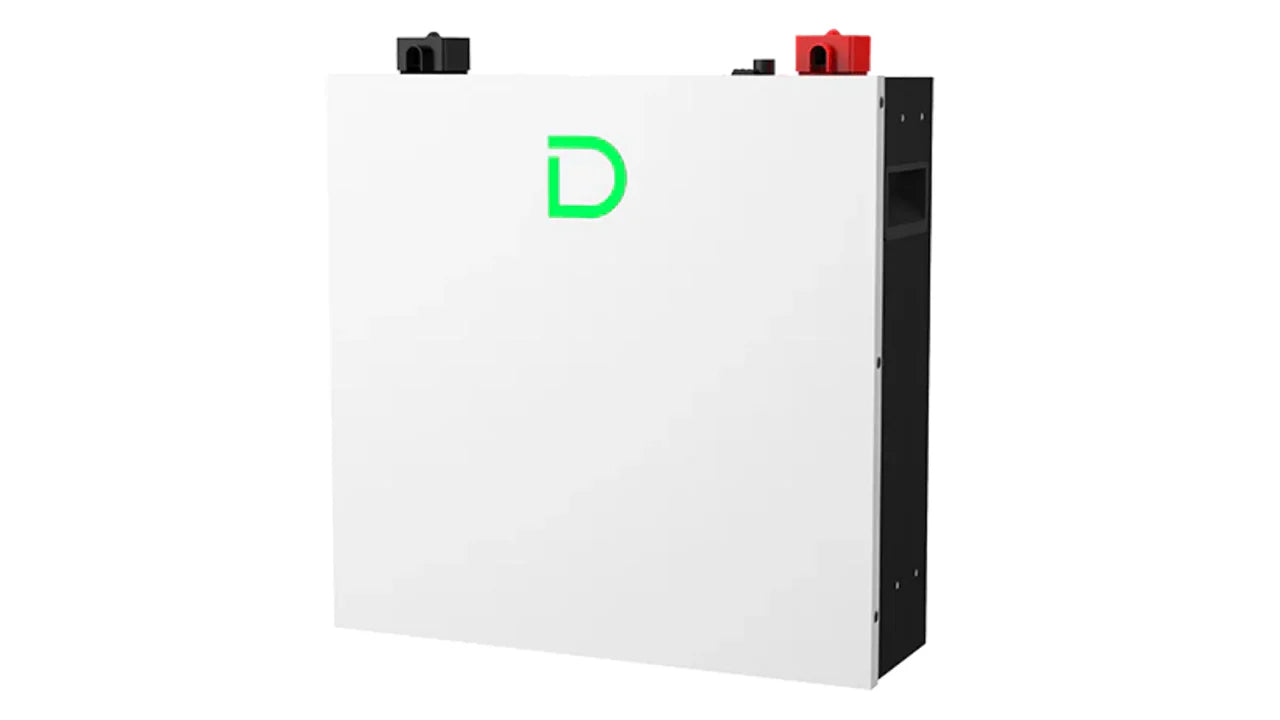

Dyness DL5.0C Pro

DL5.0C Pro 5.12kWh LiFePO4 Battery – Scalable Energy Storage for Home & Business

Looking for a reliable, high-cycle, and expandable energy storage solution? The DL5.0C Pro is a 5.12kWh lithium iron phosphate (LiFePO4) battery designed for residential, small commercial, and industrial applications. Whether you're going off-grid or enhancing a hybrid solar setup, this battery delivers safety, flexibility, and long-lasting performance.

🔋 Key Specifications at a Glance

• Nominal Energy: 5.12kWh | Capacity: 100Ah | Voltage: 51.2V (44.8–57.6V operating range)

• Battery Chemistry: LiFePO4 (Lithium Iron Phosphate) – safe, stable, and maintenance-free

• Cycle Life: ≥6,000 cycles (0.2C charge/discharge, 95% DoD)

• Depth of Discharge (DoD): 95% – maximize usable energy daily

• Weight: 46 kg | Dimensions: 488 × 515 × 150mm (W/D/H)

⚡ Advanced Performance & Flexibility

• Scalable Design: Connect up to 50 units in parallel – expand from 5.12kWh to an impressive 256kWh

• High Power Output:

  • Recommended charge/discharge: 50A (0.5C)

  • Max charge: 75A | Max discharge: 100A | Peak discharge: 120A (10 min)

• Wide Temperature Range:

  • Charge: 0°C to 55°C (with -20°C heating option)

  • Discharge: -20°C to 55°C – works in cold climates

• Smart Features: Built-in WiFi module with APP OTA updates – monitor and manage remotely

🛡️ Safety & Protection

• IP20 protection for indoor installations

• Optional aerosol fire extinguisher for active fire protection

• Full safety certifications: UN38.3, CE-EMC, IEC62619, CE-RED

🔌 Universal Inverter Compatibility

Works seamlessly with leading hybrid and off-grid inverters, including:

• SMA, Schneider, Victron Energy, Ingeteam, Solis, GoodWe, Gowatt, Solplanet, Luxpower, DEYE, Apsystems, and more.

🏠 Perfect For:

• Home solar battery storage

• Small commercial backup power

• Off-grid and hybrid systems

• Expanding existing battery banks (up to 50 units)

✅ Why choose the DL5.0C Pro? It combines high cycle life, modular expansion, cold-weather charging, and inverter flexibility – all in a compact, wall or rack-mountable design.

📦 Includes: Battery unit, built-in WiFi module, communication ports (CAN/RS485), and optional fire suppression system.
