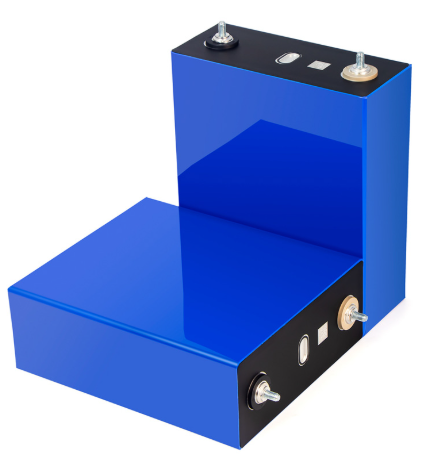

The Cornex 3.2V 100Ah is a prismatic Grade A LiFePO4 (Lithium Iron Phosphate) battery cell, also known as the Cornex PF160 model . It is designed for high-performance, long-lasting energy storage applications such as solar power systems, electric vehicles (EVs), and off-grid solutions .
Key Specifications :
-
Nominal Voltage: 3.2V
-
Nominal Capacity: 100Ah (320Wh)
-
Cycle Life: ≥6,000 cycles (0.5C, 70% capacity retention)
-
Charging Voltage: 3.65V
-
Discharge Cut-off Voltage: 2.5V
-
Weight: Approx. 2.0 kg
-
Dimensions (LxWxH): 160.1 x 50 x 118.5 mm
