Features:
1. Reliable Dual Power Switching
To guarantee always running power, smoothly alternate between common and backup power sources.
● Automatic Restoration: When the main power supply becomes accessible, automatically flips back.
● Manual Override: Offers the option to switch personally should need.
2. High- Speed Conversion
Made to minimize downtime by quick and effective power changes.
● Quick Response: Perfect operation requires ≤2 seconds for conversion.
● Emergency Ready: guarantees dependability in pivotal events like blackouts of power outages.
3. Adaptable Operation Styles
provides two ways of operating for maximum user convenience.
● Easy transition between automated and manual settings.
● Simplifies operation during power restoration—self-return feature.
4. Design compliant with norms for worldwide safety and performance for strong operation.
● IEC 60947-6-1 Certified: guarantees global electrical standards are followed.
● Flexible Use: Fit for both home and business systems.

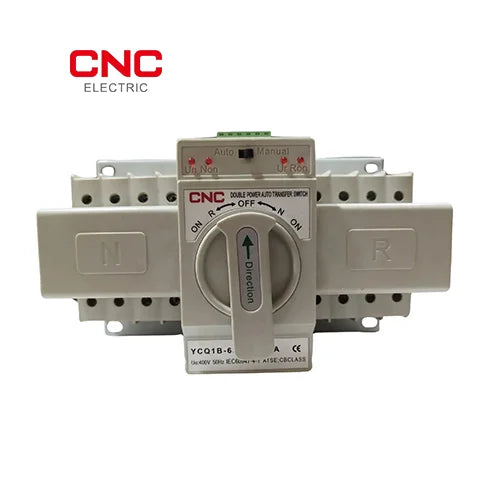

Automatic Transfer Switch Specification: YCQ1B-63/4P
● Working frequency: fifty Hz/ sixty Hz
● Rated voltage: 400V
● Operation Voltage: 220V
● ATS Level: CB
● Conversion Time: ≤ Two Seconds
● Original Specifications: 10A-63A
● Self-return as the converting technique
● Operations Method: Manual and Automatic
IEC60947-6-1 stands for standards compliance.
